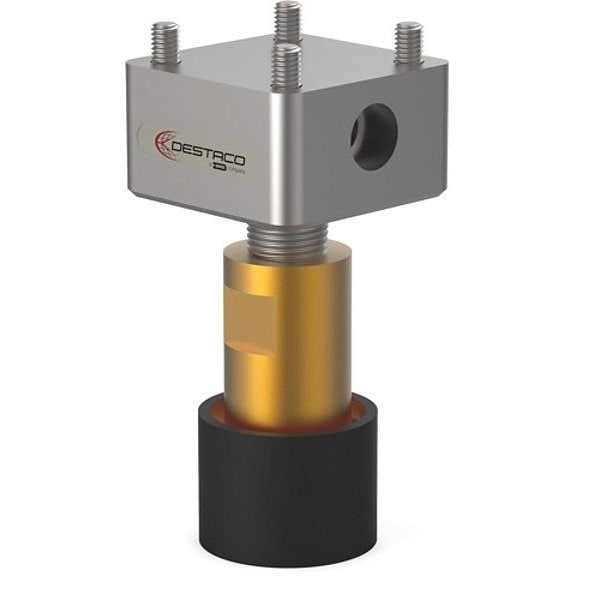

Magnetic Gripper Kit, 4 1/8inLx2inWx2inH
- Mfr # MG-050-01
- Zoro # G310062993
product price:Â
$
1,867.99
/ea
Free Shipping & Returns
Key Features
Features
Air Activated Magnet
Includes
(4) M6 x 12 mm Stainless Steel Patchlock Socket Head Cap Screws, 1 1/2 in Black Urethane Boot, Magnetic Gripper, 5 mm Hex Allen Wrench
Weight
0.69 lb
Product Type
Magnetic Gripper Kit
Body Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MG-050-01
- Zoro #
- G310062993
- UPC #
- -
- Country of Origin
- United States
- Item
- Magnetic Gripper Kit
- Features
- Air Activated Magnet
- Includes
- (4) M6 x 12 mm Stainless Steel Patchlock Socket Head Cap Screws, 1 1/2 in Black Urethane Boot, Magnetic Gripper, 5 mm Hex Allen Wrench
- Weight
- 0.69 lb
- Product Type
- Magnetic Gripper Kit
- Body Material
- Aluminum
- Center of Gravity X
- -0.15 mm
- Operating Pressure - Maximum
- 60 psi
- Operating Pressure - Minimum
- 30 psi
- Operating Temperature - Maximum
- 140 Degrees F
- Compatible Product Type
- Robotic Tools
- Inertia @ COG Z
- 96.65 Kg/mm sq
- Maximum Load Capacity with Boot
- 2 lb
- Maximum Load Capacity without Boot
- 1 lb
- Operating Temperature - Minimum
- -30 Degrees F
- Series
- MG-050
- Inertia @ COG Y
- 484.53 Kg/mm sq
- Center of Gravity Y
- 0 mm
- Compatible Series
- Small Payload Cobot Solutions
- Center of Gravity Z
- -44.21 mm
- Inertia @ COG X
- 485.23 Kg/mm sq
- Compatible Manufacturer Model Number
- ISO 9409-1-50-4-M6
Dimensions
- Overall Length
- 4 1/8 in
- Overall Width
- 2 in
- Overall Height
- 2 in
- Wire Rope Length
- 4 1/8 in
- Length
- 4 1/8 in
- Fits Chest Size
- Air Activated Magnet
Description
Magnetic Gripper Kit, Product Type Magnetic Gripper Kit, Maximum Load Capacity with Boot 2 lb, Maximum Load Capacity without Boot 1 lb, Overall Length 4 1/8 in, Overall Width 2 in, Overall Height 2 in, Operating Pressure - Minimum 30 psi, Operating Pressure - Maximum 60 psi, Body Material Aluminum, Includes (4) M6 x 12 mm Stainless Steel Patchlock Socket Head Cap Screws, 1 1/2 in Black Urethane Boot, Magnetic Gripper, 5 mm Hex Allen Wrench, Compatible Product Type Robotic Tools
Restrictions
Hazardous material
