Shop DE-STA-CO

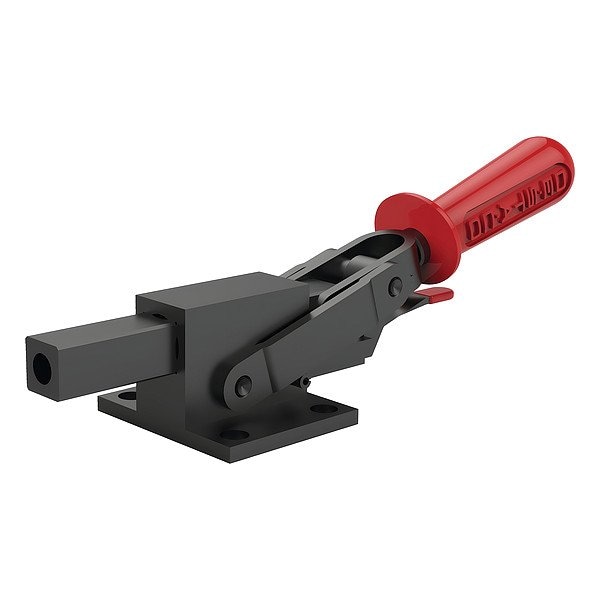

Manual Toggle Clamp, Flange

  • Mfr # 5150-MR

  • Zoro # G322917502

product price:
$
208.99
/ea
Free Shipping & Returns

Key Features

Includes Mounting Nut
No
Includes
Black Oxide Finish, Hardened Steel Pivot Pins and Bushings, Square Plunger, Toggle Lock
Plunger Shape
Square
Mounting Holes Center to Center - Long Side
1.75 in
Plunger Height
1.57 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5150-MR
Zoro #
G322917502
UPC #
697437979704
Country of Origin
Thailand

Dimensions

Plunger Height
1.57 in
Overall Depth
3.63 in
Arm Length
11.23 in
Spindle Thread Size
M12
Overall Width
2.99 in
Wire Rope Length
11.23 in
Overall Length
11.23 in

Details

Includes Mounting Nut
No
Includes
Black Oxide Finish, Hardened Steel Pivot Pins and Bushings, Square Plunger, Toggle Lock
Plunger Shape
Square
Mounting Holes Center to Center - Long Side
1.75 in
Includes Spindle
No
Application
Assembly fixtures, Light machining, Welding fixtures
Exerted Force : Applied Force - Pulling
40:1
Spindle Material
Steel
Includes Locking Handle
Yes
Item
MANUAL TOGGLE CLAMP
Holding Capacity - Maximum
5,800 lbf
Base Mounting Style
Flange
Mounting Holes Center to Center - Short Side
2.31 in
Tip Material
Steel
Handle Orientation
Horizontal
Exerted Force : Applied Force - Pushing
40:1
Plunger Travel1
1.91 in
Locking Position
Extended
Recommended Spindle Manufacturer Model Number
220203-M
Handle Color
Red
Body Material
Steel
Plunger Thread
M12

Description

MANUAL TOGGLE CLAMP, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 5,800 lbf, Plunger Travel 1.91 in, Plunger Height 1.57 in, Plunger Thread M12, Includes Spindle No, Application Assembly fixtures, Light machining, Welding fixtures, Locking Position Extended, Arm Length 11.23 in, Body Material Steel, Exerted Force : Applied Force - Pulling 40:1, Exerted Force : Applied Force - Pushing 40:1, Handle Color Red
