  11. Latch Clamp, SS w/Lever, U-Bolt, 720 Lbs
Shop All Toggle & Latch Clamps
De-Sta-Co

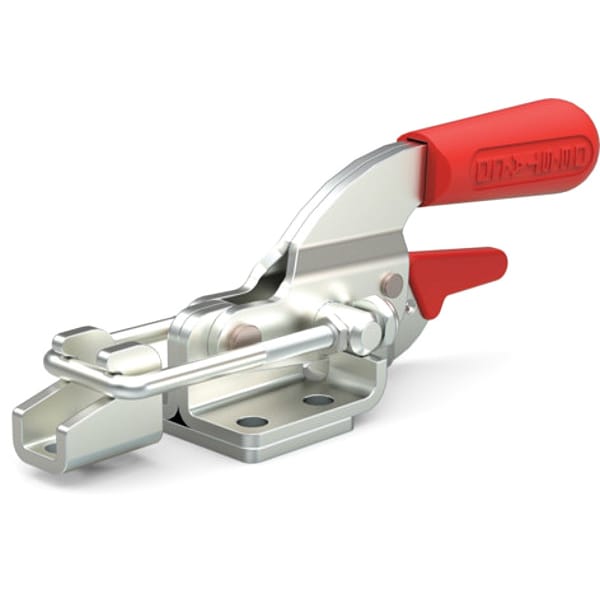

Latch Clamp, SS w/Lever, U-Bolt, 720 Lbs

product price: $77.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type U-Bolt
  • Holding Capacity (Lb.) 720
  • Overall Height (In.) 2.01 in
  • Body Material Stainless Steel
  • Overall Length (In.) 6.07 in
See all product information

Product Information

Dimensions

Overall Height (In.) 2.01 in
Overall Length (In.) 6.07 in
Dia. (In.) 0.27 in
Overall Length 6.07 in
Overall Width 1.74 in
Overall Depth 2.01 in

Details

Item Latch Clamp
Type U-Bolt
Holding Capacity (Lb.) 720
Body Material Stainless Steel
Latch Centerline 0.656 in
Arm U Bolt
Adjustable Range 0-0.49
Includes 331905 Latch Plate, Release Lever, Toggle Lock Plus
Base Mounting Centers (In.) 0.75 x 1.25
Application Clamping, Latching
Exerted Force : Applied Force - Pulling 32:1
Hook Type Horizontal U
Mounting Holes Center to Center - Short Side 0.75 in
Requires Articulation Yes
Includes Locking Handle Yes
Handle Orientation Horizontal
Drawing Movement Without Thumb Control 1.75 in
Base Mounting Style Flange
Includes Latch Plate Yes
Recommended Latch Plate Manufacturer Model Number 331905
Holding Capacity - Maximum 720 lbf
Mounting Holes Center to Center - Long Side 1.25 in
Hook Adjustment - Maximum 0.87 in
Exerted Force : Applied Force - Pushing 32:1

Description

Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 720 lbf, Hook Adjustment - Maximum 0.87 in, Drawing Movement Without Thumb Control 1.75 in, Includes Latch Plate Yes, Requires Articulation Yes, Hook Type Horizontal U, Application Clamping, Latching, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 32:1, Exerted Force : Applied Force - Pushing 32:1
