Shop DE-STA-CO

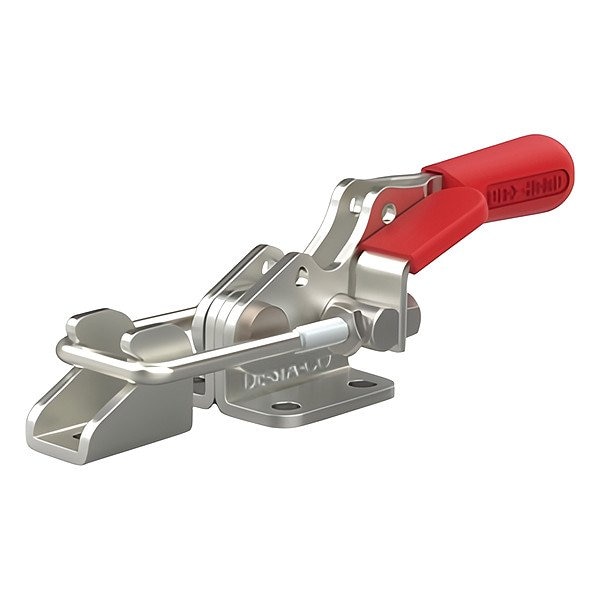

Manual Toggle Clamp, Flange, Horizontal

  • Mfr # 323-SS-M-25

  • Zoro # G622705991

product price:
$
83.75
/ea

Key Features

Handle Orientation
Horizontal
Recommended Latch Plate Manufacturer Model Number
323104-MSS
Mounting Holes Center to Center - Short Side
0.75 in
Body Material
Stainless Steel
Includes
25mm U-Hook, Latch Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
323-SS-M-25
Zoro #
G622705991
UPC #
697437323101
Country of Origin
Thailand

Dimensions

Wire Rope Length
4.86 in
Overall Depth
1.19 in
Overall Width
1.1 in
Overall Length
4.86 in

Details

Item
MANUAL TOGGLE CLAMP
Handle Orientation
Horizontal
Recommended Latch Plate Manufacturer Model Number
323104-MSS
Mounting Holes Center to Center - Short Side
0.75 in
Body Material
Stainless Steel
Includes
25mm U-Hook, Latch Plate
Exerted Force : Applied Force - Pushing
27:1
Application
Assembly, Closures for doors, lids, covers, Molding
Holding Capacity - Maximum
360 lbf
Requires Articulation
No
Includes Latch Plate
Yes
Includes Locking Handle
No
Hook Type
Horizontal U
Exerted Force : Applied Force - Pulling
27:1
Drawing Movement With Thumb Control
1.18 in
Base Mounting Style
Flange
Hook Adjustment - Maximum
0.49 in
Mounting Holes Center to Center - Long Side
0.63 in
Drawing Movement Without Thumb Control
1.18 in
Handle Color
Red

Description

MANUAL TOGGLE CLAMP, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 360 lbf, Hook Adjustment - Maximum 0.49 in, Drawing Movement Without Thumb Control 1.18 in, Includes Latch Plate Yes, Requires Articulation No, Hook Type Horizontal U, Application Assembly, Closures for doors, lids, covers, Molding, Body Material Stainless Steel, Drawing Movement With Thumb Control 1.18 in, Exerted Force : Applied Force - Pulling 27:1
