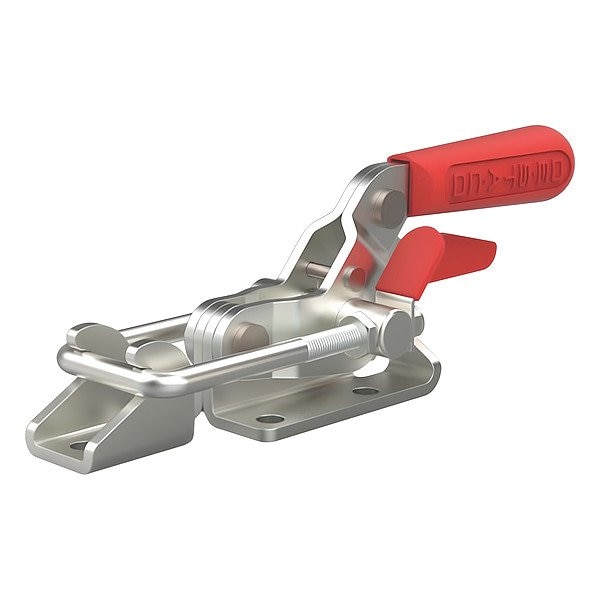

Manual Toggle Clamp, Flange, Horizontal
Mfr # 341-RSS-M-25
Zoro # G822705500
product price:Â
$
238.99
/ea
Free Shipping & Returns
Key Features
Holding Capacity - Maximum
2,000 lbf
Hook Type
Horizontal U
Base Mounting Style
Flange
Overall Width
2.12 in
Handle Orientation
Horizontal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 341-RSS-M-25
- Zoro #
- G822705500
- UPC #
- 697437341075
- Country of Origin
- United States
Dimensions
- Overall Width
- 2.12 in
- Overall Depth
- 2.89 in
- Wire Rope Length
- 8.97 in
- Overall Length
- 8.97 in
Details
- Holding Capacity - Maximum
- 2,000 lbf
- Hook Type
- Horizontal U
- Base Mounting Style
- Flange
- Handle Orientation
- Horizontal
- Requires Articulation
- No
- Recommended Latch Plate Manufacturer Model Number
- 341905
- Exerted Force : Applied Force - Pulling
- 29:1
- Includes
- 25mm U-Hook, Latch Plate, Toggle Lock
- Item
- MANUAL TOGGLE CLAMP
- Application
- Assembly, Closures for doors, lids, covers, Molding
- Drawing Movement Without Thumb Control
- 2.5 in
- Mounting Holes Center to Center - Long Side
- 1.63 in
- Drawing Movement With Thumb Control
- 2.5 in
- Handle Color
- Red
- Mounting Holes Center to Center - Short Side
- 1.5 in
- Hook Adjustment - Maximum
- 0.76 in
- Body Material
- Stainless Steel
- Includes Locking Handle
- Yes
- Includes Latch Plate
- Yes
- Exerted Force : Applied Force - Pushing
- 29:1
Description
MANUAL TOGGLE CLAMP, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 2,000 lbf, Hook Adjustment - Maximum 0.76 in, Drawing Movement Without Thumb Control 2.5 in, Includes Latch Plate Yes, Requires Articulation No, Hook Type Horizontal U, Application Assembly, Closures for doors, lids, covers, Molding, Body Material Stainless Steel, Drawing Movement With Thumb Control 2.5 in, Exerted Force : Applied Force - Pulling 29:1
