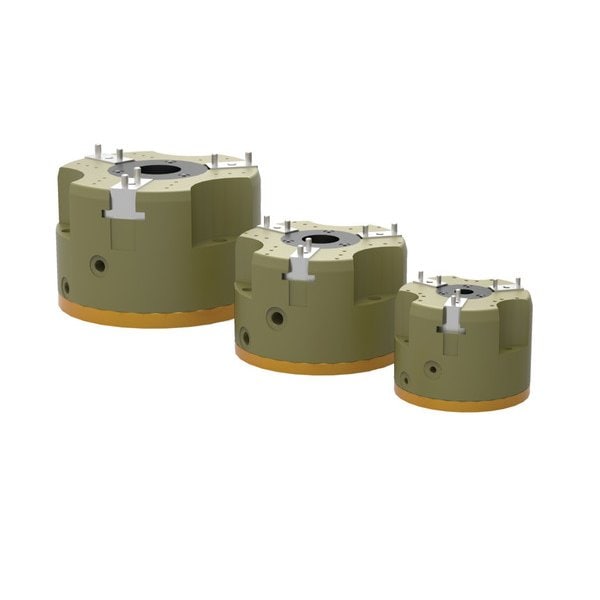

Parallel Gripper, 3 Jaw, Hole Through

  • Mfr # PPC-34

  • Zoro # G1157287

product price:
$
4,734.99
/ea
Free Shipping & Returns

Key Features

Weight
11.2 lb
Overall Height
4 3/8 in
Overall Width
5 7/8 in
Product Type
Parallel Gripper,3 Jaw, Hole Through
Stroke Length
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PPC-34
Zoro #
G1157287
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Height
4 3/8 in
Overall Width
5 7/8 in
Stroke Length
3/4 in
Maximum Finger/Jaw Length
4 3/4 in

Details

Item
Parallel Gripper,3 Jaw, Hole Through
Weight
11.2 lb
Product Type
Parallel Gripper,3 Jaw, Hole Through
Repeatability
+/-0.0008 in
Maximum Actuation Time
0.06 sec
Total Rated Grip Force @ 100 psi
4,332.57 N
Series
PPC
Minimum Operating Pressure
30 psi
Displacement
127.99 cc
Minimum Operating Temperature
-30 Degrees F
IP Rating
IP54
Seal Material
Buna-N
Maximum Operating Pressure
100 psi
Operation Type
Synchronous
System of Measurement
Inch
Maximum Operating Temperature
180 Degrees F

Description

Parallel Gripper,3 Jaw, Hole Through, Series PPC, Stroke Length 3/4 in, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 30 psi, Overall Width 5 7/8 in, Overall Height 4 3/8 in, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Weight 11.2 lb, System of Measurement Inch, Total Rated Grip Force @ 100 psi 4,332.57 N, IP Rating IP54, Seal Material Buna-N, Displacement 127.99 cc, Repeatability +/-0.0008 in, Maximum Finger/Jaw Length 4 3/4 in
