Cylinder Position Sensors (3,000+ items)
Key Features:
- Item: Reed Switch
- Number of Wires: 2
- Function: N/O SPST
Key Features:
- Item: Reed Switch,Round Clamp,9/16"- 4" Bore
Key Features:

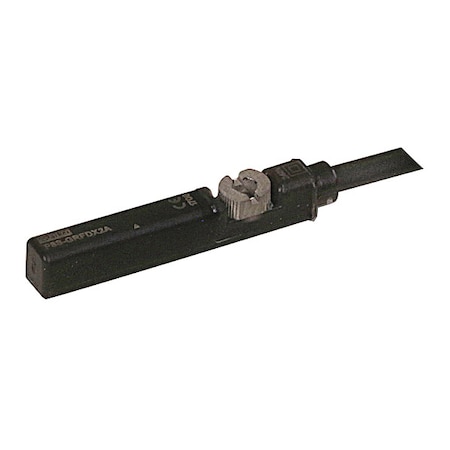

- Item: Position Sensor
- Switching Voltage: 5-120V AC/DC
- For Bore Dia.: Any Size
Key Features:
- Item: Inline Solid PNP Direct,3 Wire,0.5m
- Color: White
- Display: LED
Key Features:
- Item: Part
- Action Type - Pneumatic Thermostats: Direct Acting
- Max. Air Pressure: 25 psi
Key Features:

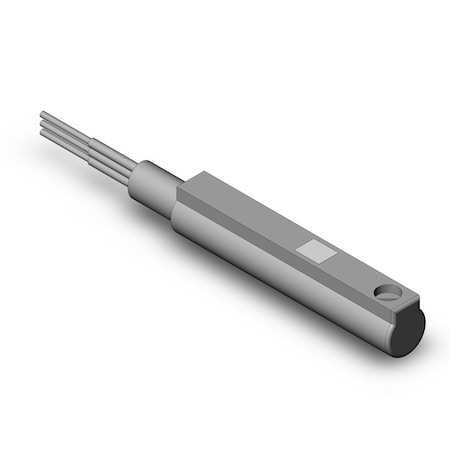

- Item: Inline Solid PNP Direct,3 Wire,SAPC 0.5m
- Description/Special Features: Auto Switch
- Enclosure Type: IP67
Key Features:
- Item: Inline Reed Auto Switch
- Description/Special Features: Band, Rail, Tie-Rod and Direct Mounting Styles, Built-In Off-Delay Timer (200 ms), Grommet, Connector, Terminal Conduit, Din Terminal Electrical Entry, Heat Resistant, Magnetic Field Resistant, Reed Type Auto Switches, Solid State Switch
- Switching Voltage: 100 V AC, 24 V DC
Key Features:
- Description/Special Features: Order with Switch Mounting Band and Carriage Where Necessary
- For Bore Dia.: Air Slide Tables, Extruded Guided Compact Air Cylinders, Guided Air Slide Tables and Rack and Pinion Rotary Vane Table Actuators, Switched Single and Double Acting Air Cylinders
- Color: Red
Key Features:
- Display: None
- Number of Wires: 2
- Item: T-Slot Pneumatic Cylinder Position Sensor
Key Features:
- Item: Inline Reed Auto Switch
- Switching Voltage: 100 V AC, 200 V AC, 24 V DC
- Description/Special Features: Band, Rail, Tie-Rod and Direct Mounting Styles, Built-In Off-Delay Timer (200 ms), Grommet, Connector, Terminal Conduit, Din Terminal Electrical Entry, Heat Resistant, Magnetic Field Resistant, Reed Type Auto Switches, Solid State Switch
Key Features:
- Item: Reed 2 Wire Direct,24VDC,100VAC,LED,0.5m
- Switching Voltage: 100V AC, 24V DC
- Description/Special Features: Auto Switch
Key Features:
- Key Height with Shaft: 13.5 mm
- Shaft Length: 39.5 mm
- Maximum Pressure: 145 psi
Key Features:
- Display: LED
- For Bore Dia.: Air Slide Tables, Extruded Guided Compact Air Cylinders, Guided Air Slide Tables, Rack and Pinion Rotary Vane Table Actuators and Parallel Linear Guide Air Grippers, Repairable Switched Single and Double Acting Cylinders,Repairable Aluminum Air Cylinders
- Lead Length (Ft.): 9.8 ft
Key Features:
- Width: 84.8 mm
- Internal Holding Force LBF @ 72 PSI: 14.84 lbf
- Opening/Closing Stroke: 10 mm
Key Features:
- For Bore Dia.: 3/4 to 2-1/2 in
- Enclosure Type: NEMA 4
- Number of Wires: 2
Key Features:
- Item: Reed Swtch,2Wre,MOV/LED,Tie Rod,2"-6"Bre
Key Features:
- Item: Inline Solid 2 Wire Direct
- Enclosure Type: IP67
- Type: Inline Solid State Auto Switch
Key Features:
- Description/Special Features: Output - Reed, PNP or NPN, N.O., 2M Cable
- Number of Wires: 2
- Display: None
About Cylinder Position Sensors
Cylinder Position Sensors are devices that measure the position of a cylinder, typically in a linear fashion. This information is used to control and monitor the motion of the cylinder, which can be useful in many industries.
Types of Cylinder Position Sensors
The most common types of Cylinder Position Sensors include air cylinder position sensors, magnetic cylinder position sensors, pneumatic cylinder linear position sensors, and pneumatic cylinder proximity switches. Depending on the application and environment in which they will be used, different types of Cylinder Position Sensors may be necessary.
How Cylinder Position Sensors are Made
Cylinder Position Sensors are typically made from metals such as stainless steel or aluminum. They also contain electronic components such as Hall Effect sensors or Reed Switches to detect changes in the movement of the cylinders. Additionally, various compounds such as magnets or rubber seals may also be included for optimal performance.
Industries that use Cylinder Position Sensors
Cylinder Position Sensors can be found in many industries including automotive manufacturing, aerospace engineering, robotics development and construction. Professionals working with these devices often rely on them to accurately measure and control their equipment’s movements.
