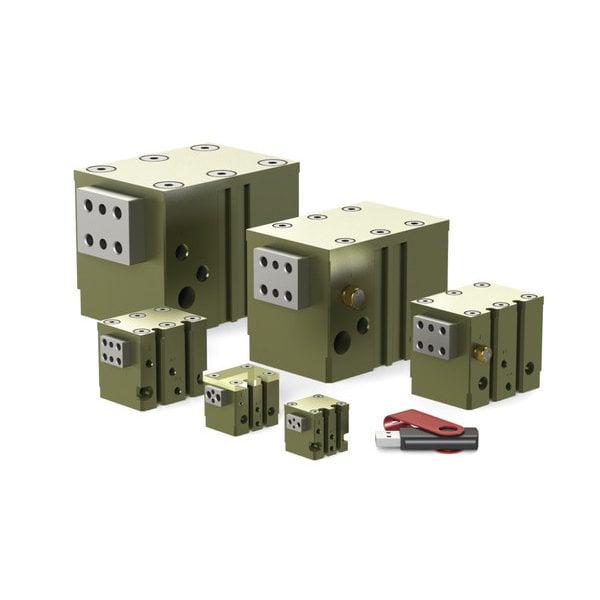

Parallel Gripper, Direct Connect
Mfr # DPDS-175M-050
Zoro # G3141489
product price:Â
$
2,785.99
/ea
Free Shipping & Returns
Key Features
Overall Height
75.3 mm
Weight
1.68 kg
Overall Length
64.8 mm
Overall Width
102 mm
Product Type
Parallel Gripper,Direct Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DPDS-175M-050
- Zoro #
- G3141489
- UPC #
- -
- Country of Origin
- United States
- Item
- Parallel Gripper,Direct Connect
- Weight
- 1.68 kg
- Product Type
- Parallel Gripper,Direct Connect
- Displacement
- 11.7 cc
- Maximum Actuation Time
- 0.4 sec
- Series
- DPDS
- IP Rating
- IP54
- Air Inlet Type
- NPT
- Operation Type
- Synchronous
- Repeatability
- +/-0.03 mm
- Maximum Operating Temperature
- 80 Degrees C
- Accuracy
- +/-0.08 mm
- Seal Material
- Buna-N
- Total Rated Grip Force @ 100 psi
- 890 N
- Maximum Operating Pressure
- 7 bar
- Minimum Operating Temperature
- -35 Degrees C
- Finger Mounting
- End
- Minimum Operating Pressure
- 1.5 bar
- System of Measurement
- Metric
Description
Parallel Gripper,Direct Connect, Series DPDS, Stroke Length 12.7 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 64.8 mm, Overall Width 102 mm, Overall Height 75.3 mm, Inlet Size 1/8 in, Air Inlet Type NPT, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 1.68 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 890 N, IP Rating IP54, Seal Material Buna-N, Displacement 11.7 cc
