This item is Discontinued.

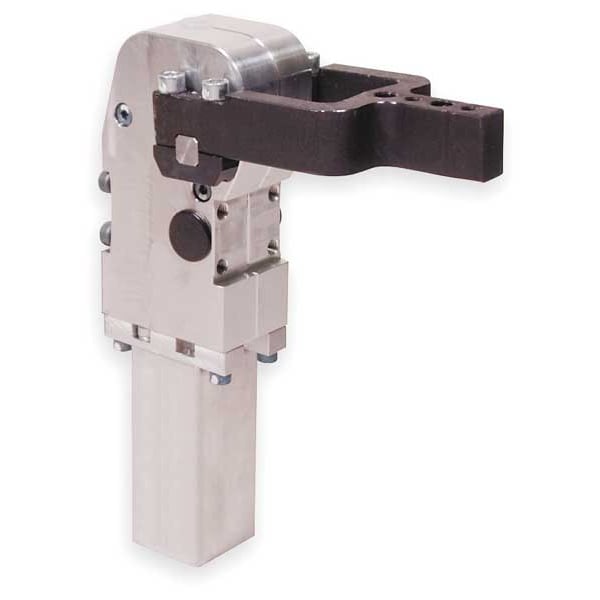

De-Sta-Co Pneumatic Clamp, 82L3G w/Sensor, 1596 82L3G-203B800

Pneumatic Clamp, 82L3G w/Sensor, 1596 (Discontinued)

  • Mfr # 82L3G-203B800
  • Zoro # G2681637
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
82L3G-203B800
Zoro #
G2681637
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Width
1.65 in
Port Size
G1/8
Overall Height
7.01 in
Overall Length
2.36 in
Cylinder Bore Size
0.98 in
Total Stroke Length
0.03 in

Details

Item
Pneumatic Swing and Toggle Clamp
Holding Capacity (Lb.)
1596
Material
Aluminum, Steel Arm
Operating Temp.
-14 to +195 F
Max. Input Air Pressure (PSI)
120
Max. Torque (In.-Lbs.)
1596
Includes
82L3G with Sensor
Base Mounting Centers (In.)
20 x 20mm
Type
82L3G w/Sensor
Features
Enclosed Model with Hand Lever, Lightweight Design
Max. Input Air Pressure
120 psi
Max. Operating Temperature
195 Degrees F
Arm Material
Aluminum
Holding Capacity
1596 lb
Min. Operating Temperature
-14 Degrees F
Body Material
Aluminum
Operating Temperature - Minimum
-14 Degrees F
Operating Temperature - Maximum
195 Degrees F
Input Air Pressure - Maximum
87 psi
Arm Swing Angle
90 Degrees
Air Connection Center-to-Center Distance
1.26 in

Description

Pneumatic Swing and Toggle Clamp, Aluminum, Overall Length 2.36 in, Overall Height 7.01 in, Arm Material Aluminum, Arm Swing Angle 90 Degrees
