  6. Pneumatic Retractor Clamp, 850lb., Alum/ST

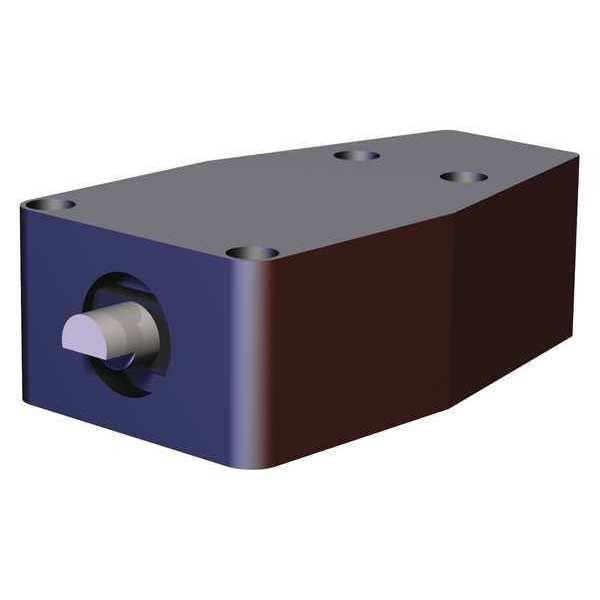

De-Sta-Co Pneumatic Retractor Clamp, 850lb., Alum/ST 800 - main

Pneumatic Retractor Clamp, 850lb., Alum/ST

  • Mfr # 800

  • Zoro # G2778511

product price:  $1,166.99
/ea
Free Shipping & Returns

Key Features

Holding Capacity (Lb.)
850
Arm
Fully Retracts
Material
Aluminum/Steel
Operating Temp.
-14 Degrees to +194 Degrees F
Max. Input Air Pressure (PSI)
150
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
800
Zoro #
G2778511
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
2.72 in
Port Size
1/4 in NPT
Overall Length
4.81 in
Air Connection Size
1/4 in
Overall Height
1.63 in

Details

Item
Swing/Toggle Clamp
Holding Capacity (Lb.)
850
Arm
Fully Retracts
Material
Aluminum/Steel
Operating Temp.
-14 Degrees to +194 Degrees F
Max. Input Air Pressure (PSI)
150
Features
Clamp Does Not Lock Over-Center, Clamps with Air and Retracts the Arm with a Return Spring, Dual Pistons Drive The Clamp Arm Out of The Body and Down to Workpiece, Single-Acting Spring-Loaded Device
Base Mounting Centers (In.)
2.21 x 3.13
Type
Single-Acting
Stroke (mm)
12.7
For Use With
Stand Alone
Clamp
Light Duty Pneumatic Hold Down
Includes
Clamp Arm
Max. Torque (In.-Lbs.)
1500
Max. Operating Temperature
194 Degrees F
Holding Capacity
850 lb
Max. Vertical Clamp Stroke
12.70mm
Body Material
Aluminum
Max. Input Air Pressure
150 psi
Arm Material
Steel
Application
Assembly, Light Machining, Welding
Min. Operating Temperature
-14 Degrees F
Vertical Clamp Stroke - Maximum
12.7 mm
Input Air Pressure - Maximum
150 psi
Air Connection Center-to-Center Distance
2.21 in
Operating Temperature - Maximum
194 Degrees F
Operating Temperature - Minimum
-14 Degrees F
Movement Direction
Straight
Air Connection Type
NPT
Clamping Force - Maximum
800 lbf

Description

Swing/Toggle Clamp, Aluminum, Overall Length 4.81 in, Overall Height 1.63 in, Application Assembly, Light Machining, Welding, Arm Material Steel
