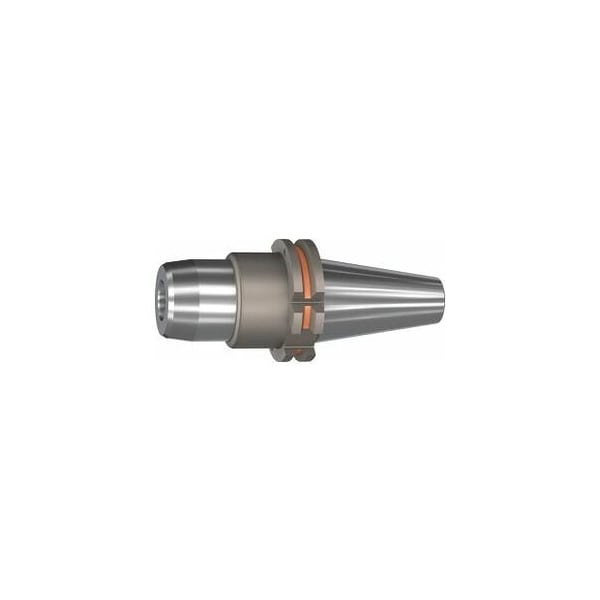

Hydraulic Chuck, Short, Slim, Form ADB, SK 40, Clamping Range: 32mm
Mfr # 302043 32
Zoro # G014776721
product price:Â
$
502.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HSC
Shape
ADB
Balance Quality
G 2.5 at 25,000 rpm
Taper Size
SK40
Coolant Through
Yes, With Max. 80 Bar
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302043 32
- Zoro #
- G014776721
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- SK40
- Dia.
- 63 mm
- Thread Size
- M16x1
- Length (In.)
- 61.5 mm
- Clamping Dia.
- 32 mm
- Outside Dia.
- 73 mm
Details
- Machining Strategy
- HSC
- Shape
- ADB
- Balance Quality
- G 2.5 at 25,000 rpm
- Coolant Through
- Yes, With Max. 80 Bar
- Item
- Hydraulic clamping chuck
- Projection
- 80.5 mm
- Standards
- ISO 7388-1
- Concentricity
- ≤ 3 µm
- Adjustment Travel
- 10 mm
Description
Radial run-out 3 um. With RFID / Balluffchip bore. Axial length adjustment possible, 10 mm adjustment track. Flexible due to use of reducing sleeves. Coolant pressure up to 80 bar. Application: For drilling, reaming and finish milling. Optional extras: Back stop screws for direct clamping / use of reducing sleeves on request. Machining strategy: HSC Clamping Dia D1: 32 mm Overhang dimension A: 80.5 mm Dia D2: 63 mm External Dia D: 73 mm Reach L1: 61.5 mm L2: 25.5 mm
