  11. Pneumatic Straight Line Clamp, 2500 Lb

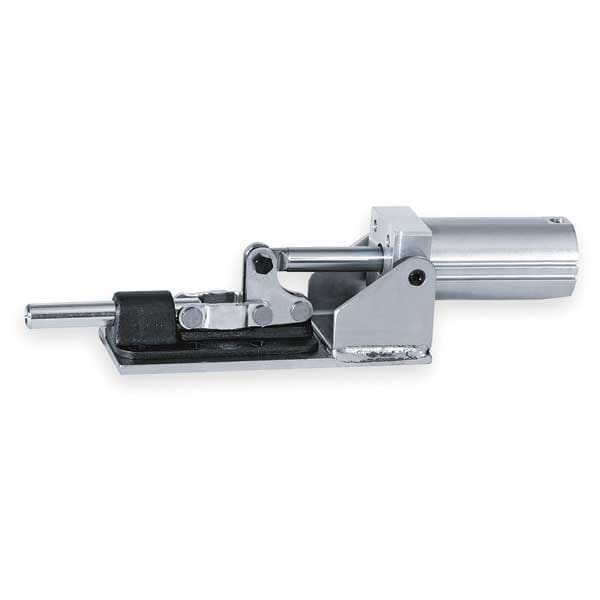

De-Sta-Co Pneumatic Straight Line Clamp, 2500 Lb 830 - main

Pneumatic Straight Line Clamp, 2500 Lb

  • Mfr # 830

  • Zoro # G1142766

product price: $496.99
/ea
Free Shipping & Returns

Key Features

Holding Capacity (Lb.)
2500
Material
Steel
Operating Temp.
-14 to +195 F
Max. Input Air Pressure (PSI)
145
Base Mounting Centers (In.)
1.63 x 1.38
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
830
Zoro #
G1142766
UPC #
697437583000
Country of Origin
United States

Dimensions

Port Size
1/8 in NPT
Arm Overall Height
1.06 in
Cylinder Bore Size
1.57 in
Overall Length
7.75 in
Air Connection Size
1/8 in
Arm Length
1.25 in
Overall Height
3.59 in
Plunger Height
1.06 in
Overall Width
3 in

Details

Item
Pneumatic Swing and Toggle Clamp
Holding Capacity (Lb.)
2500
Material
Steel
Operating Temp.
-14 to +195 F
Max. Input Air Pressure (PSI)
145
Base Mounting Centers (In.)
1.63 x 1.38
Features
Built-In Flow Restriction Eliminates Need for External Flow Controls, Sensor Ready for Round or T-Slot Style Sensors
Type
Plunger
Max. Input Air Pressure
145 psi
Holding Capacity
2500 lb
Max. Operating Temperature
195 Degrees F
Min. Operating Temperature
-14 Degrees F
Application
Assembly, Welding
Body Material
Steel
Plunger Travel
1 1/4 in
Input Air Pressure - Maximum
145 psi
Vertical Clamp Stroke - Maximum
0.38 in
Plunger Thread
3/8"-16
Body Mounting Type
T-Slot Framing
Air Connection Type
NPT
Air Connection Center-to-Center Distance
1.62 in
Operating Temperature - Maximum
194 Degrees F
Clamping Force - Maximum
800 lbf
Operating Temperature - Minimum
-10 Degrees F
Movement Direction
Straight

Description

Pneumatic Swing and Toggle Clamp, Steel, Overall Length 7.75 in, Overall Height 3.59 in, Application Assembly, Welding, Arm Length 1.25 in, Arm Swing Angle Not Applicable
