  11. Squeeze Action Clamp, Hex Head Bolt, 700lb
Shop All Handle Toggle Clamp Accessories
De-Sta-Co

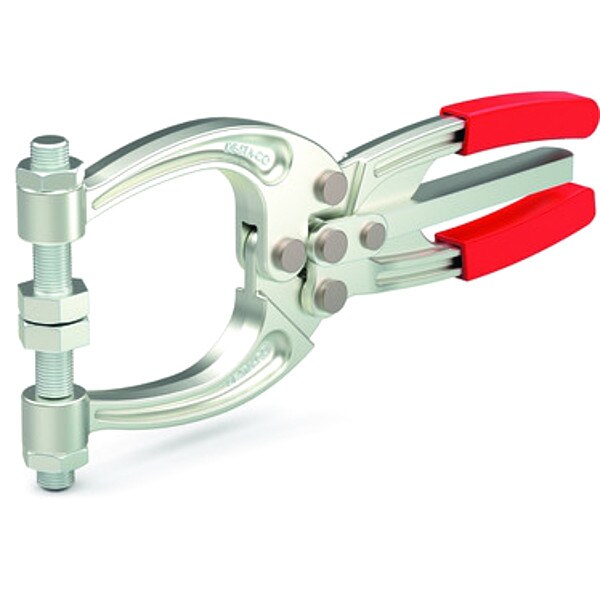

Squeeze Action Clamp, Hex Head Bolt, 700lb

product price: $83.39
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Plier
  • Capacity (Lb.) 700
  • Thread Size M10
  • End Tip Dia. (In.) 0.75 in
  • Overall Height (In.) 4 5/32 in
See all product information

Product Information

Dimensions

Thread Size M10
End Tip Dia. (In.) 0.75 in
Overall Height (In.) 4 5/32 in
Overall Length (In.) 8.5156 in
Min. Height Below Equip Frame (In.) 2 21/32 in
Max. Extended Height Below Equip Frame (In.) 4 5/32 in
Height (In.) 4 5/32 in
Overall Depth 4.16 in
Overall Length 8.51 in
Jaw Depth 2.72 in
Spindle Thread Size M10
Overall Width 0.75 in

Details

Item Squeeze Action Clamp
Type Plier
Capacity (Lb.) 700
Tip Hex Head Bolt
Finish zinc
Includes (2) Nuts and (2) Spindles
Function For Portable Clamping
Application Assembly, Welding
Body Material Steel
Spindle Material Steel
Release Mechanism Two-Way Trigger
Holding Capacity - Maximum 700 lbf
Holding Capacity - Minimum 10 lbf
Clamping Force 700 lb
Number of Spindles 2

Description

Squeeze Action Clamp, Release Mechanism Two-Way Trigger, Number of Spindles 2, Spindle Material Steel, Holding Capacity - Minimum 10 lbf, Holding Capacity - Maximum 700 lbf, Clamping Force 700 lb, Spindle Thread Size M10, Application Assembly, Welding, Body Material Steel, Includes Single Adjustable Spindle, Jaw Depth 2.72 in, Overall Depth 4.16 in, Overall Length 8.51 in, Overall Width 0.75 in
