De-Sta-Co

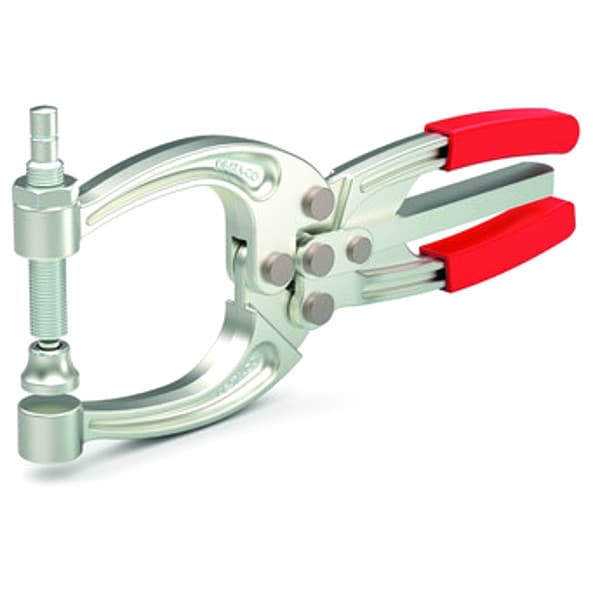

Squeeze Action Clamp, Swivel, 700lb.

product price: $52.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Plier
  • Overall Height (In.) 4 5/32 in
  • Body Material Steel
  • Overall Length (In.) 8.5156 in
  • Spindle Material Steel
See all product information

Product Information

Dimensions

Overall Height (In.) 4 5/32 in
Overall Length (In.) 8.5156 in
Min. Height Below Equip Frame (In.) 2 21/32 in
Max. Extended Height Below Equip Frame (In.) 4 5/32 in
Height (In.) 4 5/32 in
End Tip Dia. (In.) 0.75 in
Thread Size M10
Overall Width 0.75 in
Overall Length 8.51 in
Overall Depth 4.16 in
Jaw Depth 2.72 in
Spindle Thread Size M10

Details

Item Squeeze Action Clamp
Type Plier
Body Material Steel
Spindle Material Steel
Capacity (Lb.) 700 lb
Function For Portable Clamping
Includes Nut and Spindle
Tip Swivel
Finish zinc
Application Assembly, Welding
Clamping Force 700 lb
Holding Capacity - Maximum 700 lbf
Number of Spindles 1
Holding Capacity - Minimum 10 lbf
Release Mechanism Two-Way Trigger

Description

Squeeze Action Clamp, Release Mechanism Two-Way Trigger, Number of Spindles 1, Spindle Material Steel, Holding Capacity - Minimum 10 lbf, Holding Capacity - Maximum 700 lbf, Clamping Force 700 lb, Spindle Thread Size M10, Application Assembly, Welding, Body Material Steel, Includes Single Adjustable Spindle, Jaw Depth 2.72 in, Overall Depth 4.16 in, Overall Length 8.51 in, Overall Width 0.75 in
