Shop DE-STA-CO

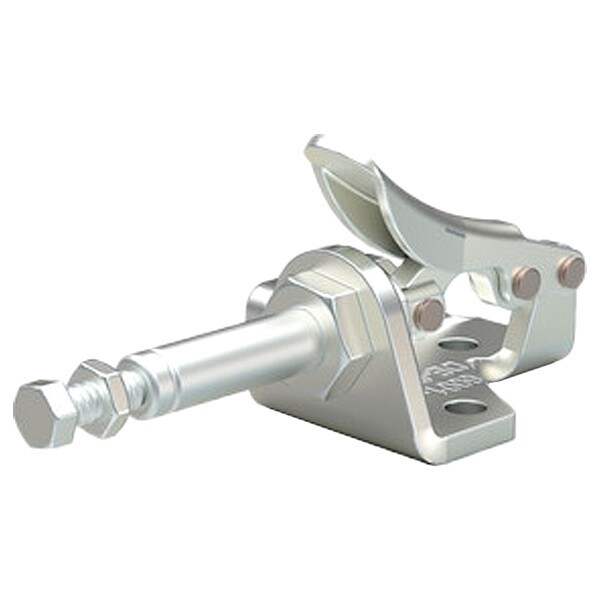

Straight-Line Action Clamp, 2.63 in L

  • Mfr # 6001-SS

  • Zoro # G310947375

product price:  $65.49
/ea

Key Features

Body Material
Stainless Steel
Spindle Material
Stainless Steel
Includes
Jam Nuts, Spindle
Application
Assembly, Gluing, Soldering, Testing
Mounting Holes Center to Center - Long Side
0.63 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6001-SS
Zoro #
G310947375
UPC #
-
Country of Origin
Germany

Dimensions

Overall Width
1.23 in
Plunger Height
0.5 in
Overall Length
2.63 in
Overall Depth
1.27 in
Fastener Thread Size
#8
Spindle Thread Size
#8-32
Tip Diameter
5/16 in
Height Under Arm
0.5 in
Arm Length
0.94 in
Wire Rope Length
2.63 in

Details

Item
Straight-Line Action Clamp
Body Material
Stainless Steel
Spindle Material
Stainless Steel
Includes
Jam Nuts, Spindle
Application
Assembly, Gluing, Soldering, Testing
Mounting Holes Center to Center - Long Side
0.63 in
Includes Spindle
Yes
Base Mounting Style
Flange
Accommodates Workpiece Variation
No
Exerted Force : Applied Force - Pushing
14:1
Recommended Spindle Manufacturer Model Number
205943
Mounting Holes Center to Center - Short Side
0.63 in
Includes Locking Handle
No
Plunger Shape
Round
Locking Position
Extended, Retracted
Plunger Thread
#8-32
Exerted Force : Applied Force - Pulling
25:1
Plunger Travel1
0.63 in
Holding Capacity - Maximum
150 lbf
Handle Material
Stainless Steel
Handle Orientation
Horizontal
Reflectivity
Reflective
Includes Mounting Nut
No
Tip Material
Stainless Steel
Requires Articulation
Yes

Description

Straight-Line Action Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 150 lbf, Plunger Travel 0.63 in, Plunger Height 0.5 in, Plunger Thread #8-32, Includes Spindle Yes, Application Assembly, Gluing, Soldering, Testing, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 0.94 in, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 25:1
