Shop DE-STA-CO

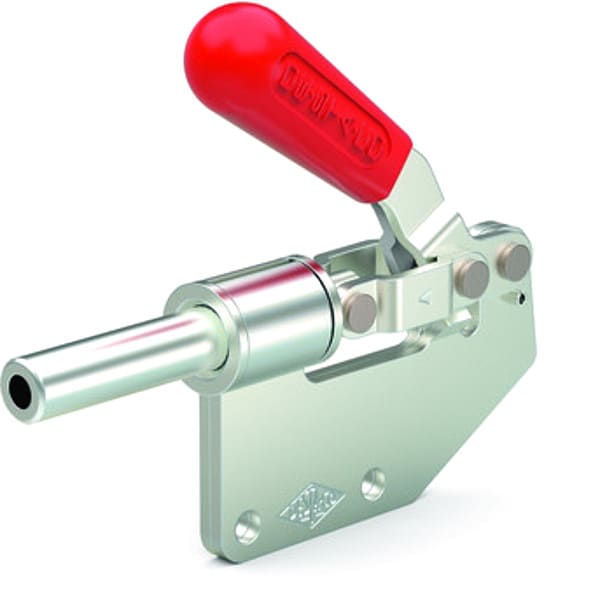

Straight Line Action Clamp, 300lb, 5/16-18

  • Mfr # 609-B

  • Zoro # G2005291

product price:
$
33.19
/ea

Key Features

Thread Size
5/16-18
Overall Height (In.)
4 17/64 in
Overall Length (In.)
5.4688 in
Finish
zinc
Type
Base Mount
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
609-B
Zoro #
G2005291
UPC #
-
Country of Origin
Thailand

Dimensions

Thread Size
5/16-18
Overall Height (In.)
4 17/64 in
Overall Length (In.)
5.4688 in
Max. Extended Height Below Equip Frame (In.)
4 17/64 in
Min. Height Below Equip Frame (In.)
4 17/64 in
Mounting Flange Size (In.)
2-3/16 x 3-37/64
Height (In.)
4 17/64 in
End Tip Dia. (In.)
0.44 in
Plunger Height
1.82 in
Overall Depth
4.27 in
Tip Diameter
1/2 in
Overall Width
2.19 in
Spindle Thread Size
5/16 in-18
Overall Length
5.46 in
Wire Rope Length
5.46 in
Length
5.46 in

Details

Item
Straight Line Clamp
Finish
zinc
Type
Base Mount
Capacity (Lb.)
300 lb
Function
Push or Pull Clamp
Tip
Internally Threaded
Application
Clamping
Recommended Spindle Manufacturer Model Number
207203
Mounting Holes Center to Center - Long Side
1.62 in
Plunger Thread
5/16-18
Accommodates Workpiece Variation
No
Tip Material
Internally Threaded
Exerted Force : Applied Force - Pushing
36:1/47:1
Base Mounting Style
Vertical
Handle Orientation
Horizontal
Body Material
Steel
Includes Locking Handle
No
Plunger Travel1
1.25 in
Holding Capacity - Maximum
300 lbf
Locking Position
Extended, Retracted
Exerted Force : Applied Force - Pulling
36:1/47:1
Requires Articulation
Yes
Includes Spindle
No
Mounting Holes Center to Center - Short Side
1.38 in
Plunger Shape
Round

Description

Straight Line Clamp, Base Mounting Style Vertical, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 300 lbf, Plunger Travel 1.25 in, Plunger Height 1.82 in, Plunger Thread 5/16-18, Includes Spindle No, Application Clamping, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Body Material Steel, Exerted Force : Applied Force - Pulling 36:1/47:1, Exerted Force : Applied Force - Pushing 36:1/47:1
