Shop DE-STA-CO

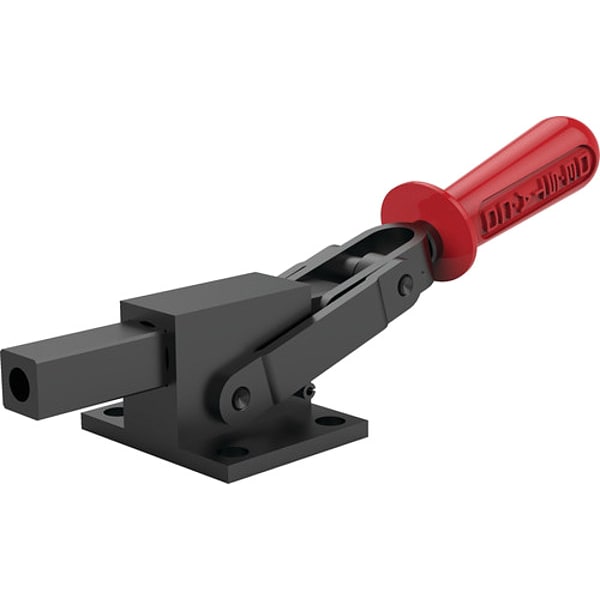

Straight Line Action Clamp, 5800 lb Cap

  • Mfr # 5150

  • Zoro # G5158011

product price:  $109.99
/ea
Free Shipping & Returns

Key Features

Holding Capacity (Lb.)
5800
Thread Size
1/2 in
Plunger Dia. (In.)
0.75
Plunger Travel (In.)
1.91
Overall Height (In.)
3.63
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5150
Zoro #
G5158011
UPC #
697437979643
Country of Origin
Thailand

Dimensions

Thread Size
1/2 in
Plunger Dia. (In.)
0.75
Overall Height (In.)
3.63
Overall Length (In.)
11.24
Height Under Arm (In.)
1.37
Overall Height
3.6300 in
Plunger Dia.
3/4 in
Height Under Arm
1.57 in
Overall Length
11.23 in
Overall Depth
3.63 in
Fastener Thread Size
1/2 in
Overall Width
2.99 in
Tip Diameter
3/4 in
Arm Length
1.96 in
Plunger Height
1.38 in
Wire Rope Length
11.23 in

Details

Item
Straight Line Clamp
Holding Capacity (Lb.)
5800
Plunger Travel (In.)
1.91
Base Mounting Centers (In.)
1.75 x 2.31
Type
Square Plunger, Flanged Base
Handle
125 Degrees
Material - Machining
Steel
Capacity
5800 lb
Plunger Travel
1.9100 in
Application
Assembly, Checking Fixtures, Closures, Machining, Welding, Wood Working
Features
Hardened Steel Pivot Pins and Bushings for Long Life
Finish - Machining
Black Oxide
Handle Shape
Straight at 125 Degrees Angle
Base Mounting Centers
1-3/4 in x 2.31 in
Handle Orientation
Horizontal
Includes Locking Handle
No
Plunger Shape
Square
Accommodates Workpiece Variation
No
Includes Spindle
No
Holding Capacity - Maximum
5,800 lbf
Recommended Spindle Manufacturer Model Number
325203
Mounting Holes Center to Center - Short Side
1.75 in
Plunger Thread
1/2-13
Locking Position
Extended
Body Material
Steel
Mounting Holes Center to Center - Long Side
2.31 in
Exerted Force : Applied Force - Pushing
40:1
Plunger Travel1
1.91 in
Base Mounting Style
Flange

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 5,800 lbf, Plunger Travel 1.91 in, Plunger Height 1.38 in, Plunger Thread 1/2-13, Includes Spindle No, Application Assembly, Checking Fixtures, Closures, Machining, Welding, Wood Working, Locking Position Extended, Accommodates Workpiece Variation No, Arm Length 1.96 in, Body Material Steel, Exerted Force : Applied Force - Pushing 40:1
