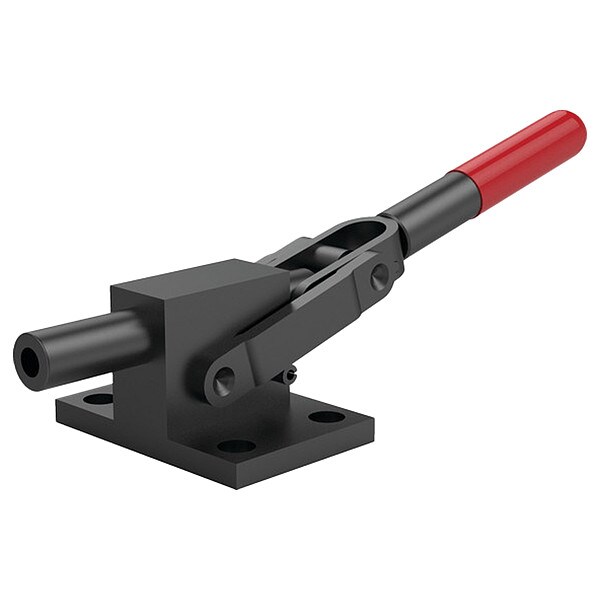

Straight-Line Action Clamp, 7.61 in L
- Mfr # 5131-M
- Zoro # G611320655
product price:Â
$
81.69
/ea
Key Features
Body Material
Steel
Application
Fixture Assembly, Light Machining, Welding Fixtures
Recommended Spindle Manufacturer Model Number
461203-M
Overall Length
7.61 in
Overall Width
2.52 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5131-M
- Zoro #
- G611320655
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Straight-Line Action Clamp
- Body Material
- Steel
- Application
- Fixture Assembly, Light Machining, Welding Fixtures
- Recommended Spindle Manufacturer Model Number
- 461203-M
- Includes Locking Handle
- No
- Handle Material
- Steel
- Mounting Holes Center to Center - Short Side
- 1.13 in
- Plunger Shape
- Round
- Plunger Travel1
- 1 in
- Exerted Force : Applied Force - Pushing
- 40:1
- Base Mounting Style
- Flange
- Includes Spindle
- No
- Plunger Thread
- M8
- Holding Capacity - Maximum
- 2,500 lbf
- Mounting Holes Center to Center - Long Side
- 1.87 in
- Accommodates Workpiece Variation
- No
- Includes Mounting Nut
- No
- Handle Orientation
- Horizontal
- Reflectivity
- Nonreflective
- Handle Color
- Red
- Requires Articulation
- Yes
- Locking Position
- Extended
Description
Straight-Line Action Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 2,500 lbf, Plunger Travel 1 in, Plunger Height 1.1 in, Plunger Thread M8, Includes Spindle No, Application Fixture Assembly, Light Machining, Welding Fixtures, Locking Position Extended, Accommodates Workpiece Variation No, Arm Length 1.15 in, Body Material Steel, Exerted Force : Applied Force - Pulling Not Applicable
