  10. /
  11. Straight Line Clamp, 560 lb Cap
Shop All Straight Line Clamps
De-Sta-Co

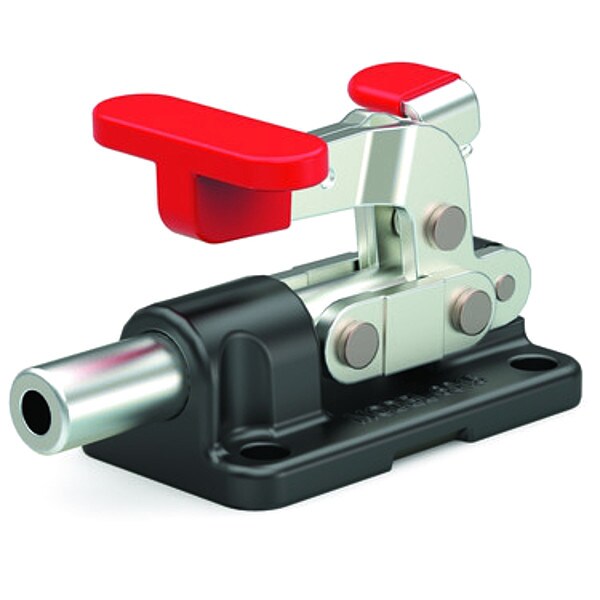

Straight Line Clamp, 560 lb Cap

product price: $53.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Holding Capacity (Lb.) 560
  • Thread Size 1/4 in
  • Plunger Dia. (In.) 0.39
  • Plunger Travel (In.) 0.7
  • Overall Height (In.) 1.59
See all product information

Product Information

Dimensions

Thread Size 1/4 in
Plunger Dia. (In.) 0.39
Overall Height (In.) 1.59
Overall Length (In.) 2.96
Height Under Arm (In.) 0.5
Plunger Dia. 0.3900 in
Overall Length 2.96 in
Overall Height 1.5900 in
Height Under Arm 0.5 in
Overall Width 1.26 in
Plunger Height 0.5 in
Overall Depth 1.59 in
Fastener Thread Size 1/4 in

Details

Item Straight Line Clamp
Holding Capacity (Lb.) 560
Plunger Travel (In.) 0.7
Base Mounting Centers (In.) 1.75 x .87
Handle 184 Degrees
Type Flanged Base With Toggle Lock Plus
Application Assembly, Checking Fixtures, Tensioning Devices
Material - Machining Steel
Features Smallest of the Solid Base Straight Line Action Clamps
Capacity 560 lb
Plunger Travel 0.7000 in
Handle Shape Straight at 184 Degrees Angle
Base Mounting Centers 1-3/4 in x 0.87 in
Holding Capacity - Maximum 560 lbf
Body Material Steel
Handle Orientation Horizontal
Locking Position Retracted
Plunger Shape Round
Accommodates Workpiece Variation No
Plunger Thread 1/4-20
Exerted Force : Applied Force - Pushing 35:1
Includes Spindle No
Includes Locking Handle Yes
Base Mounting Style Flange
Mounting Holes Center to Center - Long Side 1.75 in
Recommended Spindle Manufacturer Model Number 205203
Mounting Holes Center to Center - Short Side 1.26 in
Exerted Force : Applied Force - Pulling 35:1
Plunger Travel1 0.7 in
