Shop DE-STA-CO

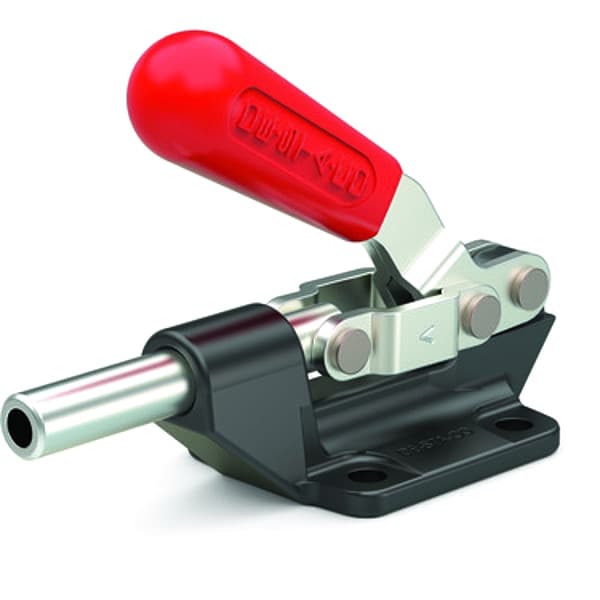

Toggle Clamp, Flanged Base, 850Lb, 4.04" H

  • Mfr # 608

  • Zoro # G1519725

product price:
$
57.39
/ea

Key Features

Holding Capacity (Lb.)
850
Thread Size
3/8 in
Plunger Dia. (In.)
0.62
Plunger Travel (In.)
1.63
Overall Height (In.)
4.04
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
608
Zoro #
G1519725
UPC #
-
Country of Origin
United States
Item
Straight Line Clamp
Holding Capacity (Lb.)
850
Plunger Travel (In.)
1.63
Base Mounting Centers (In.)
1.63 x 1.63
Handle
Straight
Type
Flanged Base Mount
Includes
Ergonomic Grip
Handle Shape
Straight
Application
Assembly and Test, Checking Fixtures, Tensioning Devices, Welding Fixtures
Base Mounting Centers
1-5/8 x 1-5/8 in
Plunger Travel
1-5/8 in
Features
Allows Handle to Rotate, Large Holding Capacity
Capacity
850 lb
Material - Machining
Steel
Base Mounting Style
Flange
Mounting Holes Center to Center - Long Side
1.63 in
Exerted Force : Applied Force - Pushing
44:1
Includes Locking Handle
No
Holding Capacity - Maximum
850 lbf
Plunger Travel1
1.63 in
Body Material
Steel
Locking Position
Extended, Retracted
Mounting Holes Center to Center - Short Side
1.63 in
Exerted Force : Applied Force - Pulling
50:1
Includes Spindle
No
Accommodates Workpiece Variation
No
Handle Orientation
Horizontal
Recommended Spindle Manufacturer Model Number
210203
Plunger Thread
3/8-16
Plunger Shape
Round

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 850 lbf, Plunger Travel 1.63 in, Plunger Height 1.25 in, Plunger Thread 3/8-16, Includes Spindle No, Application Assembly and Test, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.59 in, Body Material Steel, Exerted Force : Applied Force - Pulling 50:1
