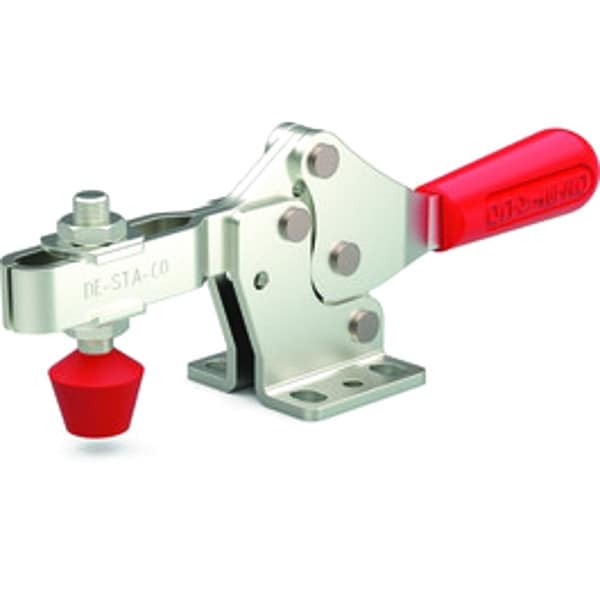

Toggle Clamp, Horiz, 2.40 In, 7.50 In
Mfr # 227-U
Zoro # G0562493
product price:Â
$
23.19
/ea
Key Features
Type
Horizontal Handle Hold Down
Holding Capacity (Lb.)
500
Overall Height (In.)
2.4 in
Body Material
Steel
Overall Length (In.)
7.48 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 227-U
- Zoro #
- G0562493
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Height (In.)
- 2.4 in
- Overall Length (In.)
- 7.48 in
- Height Under Arm (In.)
- 1.25 in
- Thread Size
- M8
- Dia. (In.)
- 0.26 in
- Arm Length
- 2.65 in
- Overall Width
- 1.7 in
- Overall Length
- 7.48 in
- Height Under Arm
- 1.25 in
- Overall Depth
- 2.4 in
- Spindle Thread Size
- M8
- Wire Rope Length
- 7.48 in
- Length
- 7.48 in
Description
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 500 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 91 Degrees , Arm Length 2.65 in, Height Under Arm 1.25 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Closures, Welding, Wood Working, Body Material Steel, Handle Color Red, Includes Spindle (225208-M), Flanged Washer (507107)
