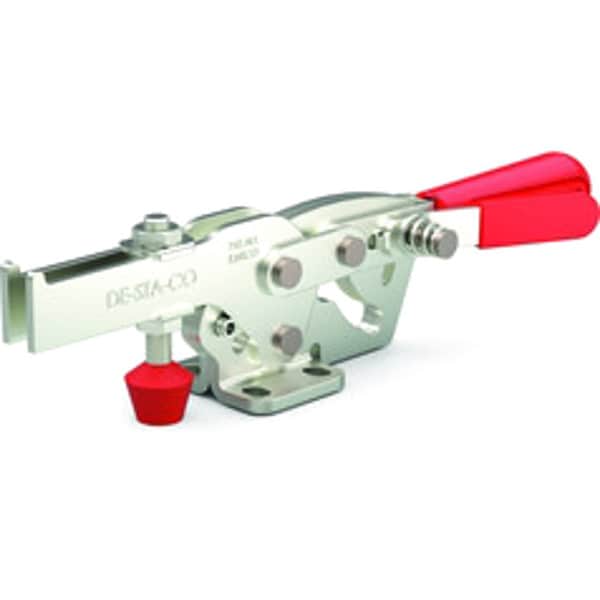

Toggle Clamp, Horiz w/Lock, 2.20 In, 9.88
Mfr # 2027-UR
Zoro # G1563283
product price:Â
$
68.99
/ea
Key Features
Type
Horizontal Handle Hold Down
Holding Capacity (Lb.)
840
Overall Height (In.)
2.25 in
Body Material
Steel
Overall Length (In.)
9.88 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2027-UR
- Zoro #
- G1563283
- UPC #
- -
- Country of Origin
- United States
- Item
- Toggle Clamp
- Type
- Horizontal Handle Hold Down
- Holding Capacity (Lb.)
- 840
- Body Material
- Steel
- Spindle Material
- Neoprene
- Arm
- U-Shaped
- Spindle
- Flat Cushion Neoprene
- Includes
- Spindle (2007208-M), Flanged Washer (507107)
- Base Mounting Centers (In.)
- 1.03 x 1.21
- Handle
- 68 Degrees
- Application
- Assembly, Checking Fixtures, Clamping, Closures, Machining, Woodworking
- Accommodates Workpiece Variation
- No
- Holding Capacity - Maximum
- 840 lbf
- Mounting Holes Center to Center - Long Side
- 1.21 in
- Handle Orientation
- Horizontal
- Arm Style
- U-Bar
- Tip Material
- Neoprene
- Base Mounting Style
- Flange
- Mounting Holes Center to Center - Short Side
- 1.03 in
- Clamp Arm Opening Angle
- 68 Degrees
- Includes Locking Handle
- Yes
Description
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 840 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 68 Degrees , Arm Length 2.86 in, Height Under Arm 1.32 in, Includes Locking Handle Yes, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Closures, Machining, Woodworking, Body Material Steel, Includes Spindle (2007208-M), Flanged Washer (507107)
