Defelsko

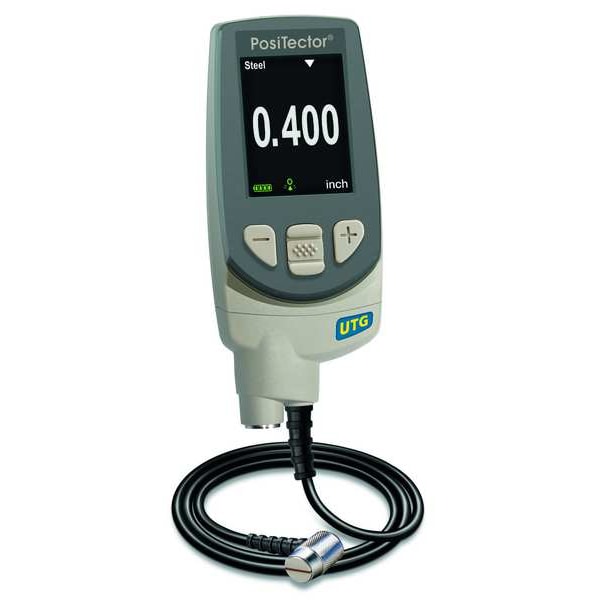

Ultrasonic Thickness Gage

product price: $1,264.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Application Evaluate The Effects of Corrosion or Erosion by Measuring the Thickness of Tanks, Pipes, or Any Structure Where Access is Limited To One Side
  • Base Material Ferrous and Non-Ferrous
  • Includes Couplant, Protective Holster, Soft Carrying Case
  • Accuracy +/-0.00 in, +/-0.01mm
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 2 yr
Cord Length 3 ft
Battery Size AAA
Manufacturer Warranty Length 2 yr

Details

Promotion Restriction Not eligible for promotion
Item Ultrasonic Thickness Gauge
Application Evaluate The Effects of Corrosion or Erosion by Measuring the Thickness of Tanks, Pipes, or Any Structure Where Access is Limited To One Side
Base Material Ferrous and Non-Ferrous
Includes Couplant, Protective Holster, Soft Carrying Case
Accuracy +/-0.00 in, +/-0.01mm
Resolution (In./mm) 0.001/ 0.01
Data Storage Yes
Velocity Ranges 0.0492 to 0.393 in/sec, 1250 to 10,000 mps
Measuring Range 0.040 to 5.0 in (1 to 125mm)
Calibration Certificate NIST
Recording Capacity 250
Standards ASTM E797
Frequency (MHz) 5
Measurement Rate 6 readings/sec
Interface USB
Minimum Thickness Measured 0.04 in
Battery Voltage 1.5V
Thickness Measurement Resolution 0.001 in
Power Source Battery
Thickness Measurement Accuracy +/-0.001
Number of Batteries Required 3
Batteries Included Yes
Maximum Thickness Measured 5 in
Calibration Certificate Type NIST
Maximum Frequency 5 MHz
Battery Chemistry Alkaline

Description

Ultrasonic Thickness Gauge, Includes Couplant, Protective Holster, Soft Carrying Case, Thickness Measurement Accuracy +/-0.001, Thickness Measurement Resolution 0.001 in, Calibration Certificate Type NIST, Maximum Frequency 5 MHz, Maximum Thickness Measured 5 in, Minimum Thickness Measured 0.04 in, Standards ASTM E797, Interface USB, Batteries Included Yes, Battery Chemistry Alkaline, Manufacturer Warranty Length 2 yr, Battery Size AAA, Battery Voltage 1.5V, Number of Batteries Required 3
