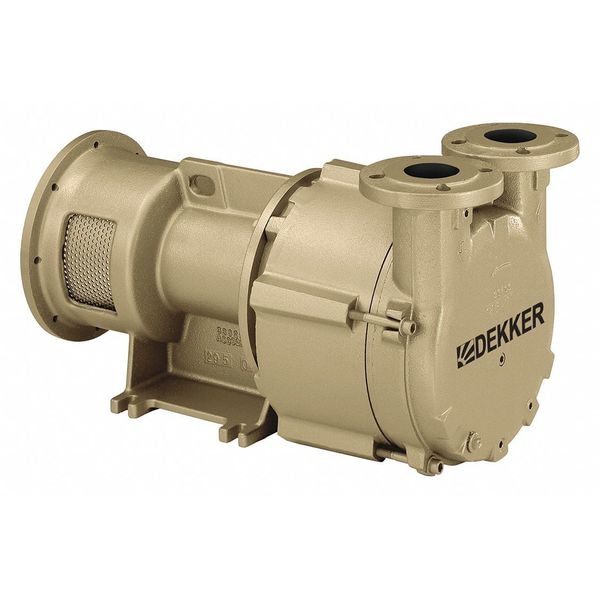

Liquid Ring Vacuum Pump, 1 Stage, 200 cfm

  • Mfr # DV0200D-KB4

  • Zoro # G2214564

product price:
$
20,365.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

HP
15 hp
Voltage
230/460V AC
Free Air CFM
200
Inlet/Outlet
3/8 in
Max. dBA
75
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DV0200D-KB4
Zoro #
G2214564
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
28.84 in
Overall Height
9.84 in
Overall Width
15.16 in
Outlet Size
2 1/2 in
Inlet Size
2 1/2 in
Wire Rope Length
28.84 in
Length
28.84 in

Details

Item
Liquid Ring Vacuum Pump
HP
15 hp
Voltage
230/460V AC
Free Air CFM
200
Inlet/Outlet
3/8 in
Max. dBA
75
Impeller Material
316 Stainless Steel
Includes Motor
No
Housing Material
316 Stainless Steel
Max. Vacuum
29 in Hg
Hz
60
Motor Type
Monoblock
RPM
1,750 RPM
Weight
282 lb
Standards
ISO 9001:2015
Duty
Continuous
Phase
Three
Inlet Type
Flange
Sound Level
75 dB
Outlet Type
RF Flange
Output Power
15 hp
Wattage
11 kW
Number of Stages
1
Power Source
Corded Electric
Free Air Flow Rate
200 cfm
Maximum Vacuum
29 in Hg
Duty Cycle
Continuous
Maximum Speed
1,750 RPM
Frequency
60 Hz
Compressor Type
Liquid Ring
Enclosure Rating
NEMA C
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Liquid Ring Vacuum Pump, Includes Motor No, Number of Stages 1, Motor Type Monoblock, Free Air Flow Rate 200 cfm, Maximum Vacuum 29 in Hg, Output Power 15 hp, Housing Material 316 Stainless Steel, Impeller Material 316 Stainless Steel, Inlet Size 2 1/2 in, Inlet Type Flange, Outlet Size 2 1/2 in, Outlet Type RF Flange, Maximum Speed 1,750 RPM
