Shop DEKKER VACUUM TECHNOLOGIES

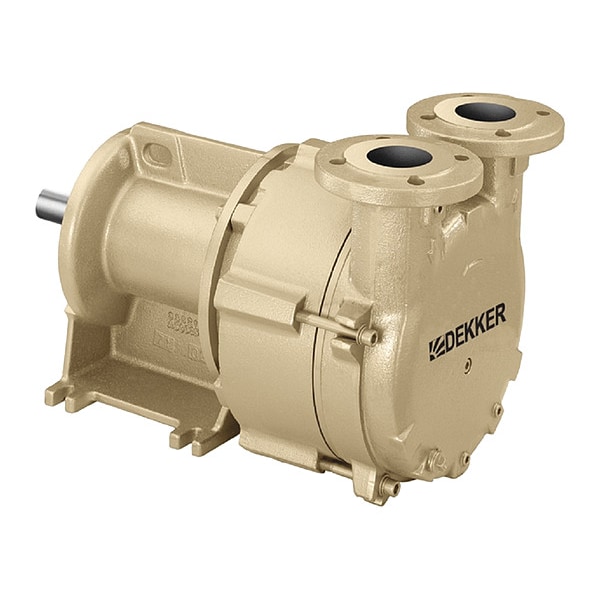

Liquid Ring Vacuum Pump, 1 Stage, 200 cfm

  • Mfr # DV0200D-PB4

  • Zoro # G0185379

product price:
$
21,227.99
/ea
Free Shipping & Returns

Key Features

HP
15 hp
Voltage
230/460V AC
Free Air CFM
200
Inlet/Outlet
2 1/2 in
Max. dBA
75
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DV0200D-PB4
Zoro #
G0185379
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
24.63 in
Overall Height
16.02 in
Overall Width
15.16 in
Inlet Size
2 1/2 in
Outlet Size
2 1/2 in
Wire Rope Length
24.63 in
Length
24.63 in

Details

Item
Liquid Ring Vacuum Pump
HP
15 hp
Voltage
230/460V AC
Free Air CFM
200
Inlet/Outlet
2 1/2 in
Max. dBA
75
RPM
1,750 RPM
Housing Material
316 Stainless Steel
Duty
Continuous
Weight
251 lb
Impeller Material
316 Stainless Steel
Includes Motor
No
Motor Type
Pedestal Bare-Shaft
Standards
ISO 9001:2015
Hz
60
Max. Vacuum
29 in Hg
Phase
Three
Free Air Flow Rate
200 cfm
Number of Stages
1
Output Power
15 hp
Compressor Type
Liquid Ring
Frequency
60 Hz
Power Source
Corded Electric
Outlet Type
RF Flange
Maximum Speed
1,750 RPM
Maximum Vacuum
29 in Hg
Wattage
11 kW
Inlet Type
Flange
Duty Cycle
Continuous
Sound Level
75 dB
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Liquid Ring Vacuum Pump, Includes Motor No, Number of Stages 1, Motor Type Pedestal Bare-Shaft, Free Air Flow Rate 200 cfm, Maximum Vacuum 29 in Hg, Output Power 15 hp, Housing Material 316 Stainless Steel, Impeller Material 316 Stainless Steel, Inlet Size 2 1/2 in, Inlet Type Flange, Outlet Size 2 1/2 in, Outlet Type RF Flange, Maximum Speed 1,750 RPM
