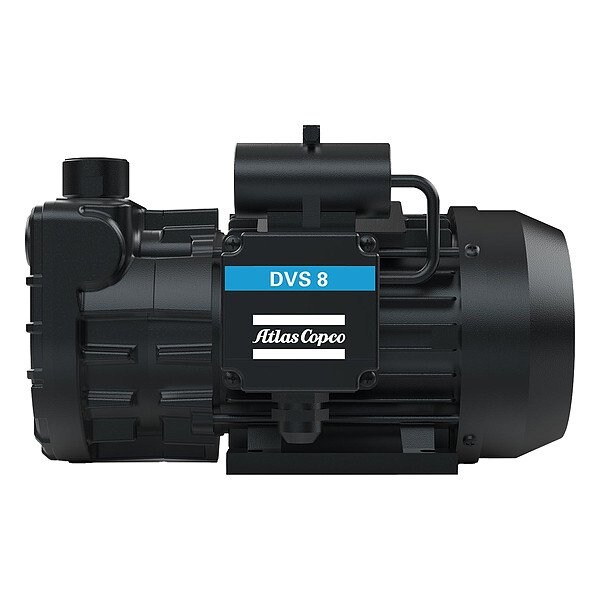

Vacuum Pump, 0.3 kW, 230V AC
Mfr # DVS8 230V/1/60
Zoro # G416137397
product price:Â
$
2,095.99
/ea
Free Shipping & Returns
Key Features
Voltage
230V AC
Phase
Single
Weight
18.7 lb
Overall Length
9.96 in
Outlet Hose/Tube OD
1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DVS8 230V/1/60
- Zoro #
- G416137397
- UPC #
- -
- Country of Origin
- Italy
- Item
- Vacuum Pump
- Voltage
- 230V AC
- Phase
- Single
- Weight
- 18.7 lb
- Outlet Hose/Tube OD
- 1/2 in
- Output Power
- 0.3 kW
- Vane Material
- Graphite
- Frequency
- 60 Hz
- Maximum Flow Rate
- 5.2 cfm
- Outlet Hose/Tube ID
- 3/8 in
- Runs Dry
- Yes
- Maximum Speed
- 3,300 RPM
- Self-Priming
- Yes
- Application
- CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking
- Duty Cycle
- Continuous
- Series
- DVS
- Maximum Vacuum
- 112.5 torr
- Pump Type
- Rotary Vane Vacuum
- Includes
- Exhaust Silencer, Internal Inlet Filter, Non-Return Valve
- Inlet Type
- BSPT
- Outlet Type
- BSPT
- Maximum Discharge Pressure
- 0.8 bar
Description
Vacuum Pump, Output Power 0.3 kW, Phase Single, Voltage 230V AC, Maximum Flow Rate 5.2 cfm, Maximum Vacuum 112.5 torr, Inlet Size 3/8 in, Inlet Type BSPT, Outlet Size 1/2 in, Outlet Type BSPT, Application CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking, Maximum Discharge Pressure 0.8 bar, Maximum Operating Pressure Not Applicable
