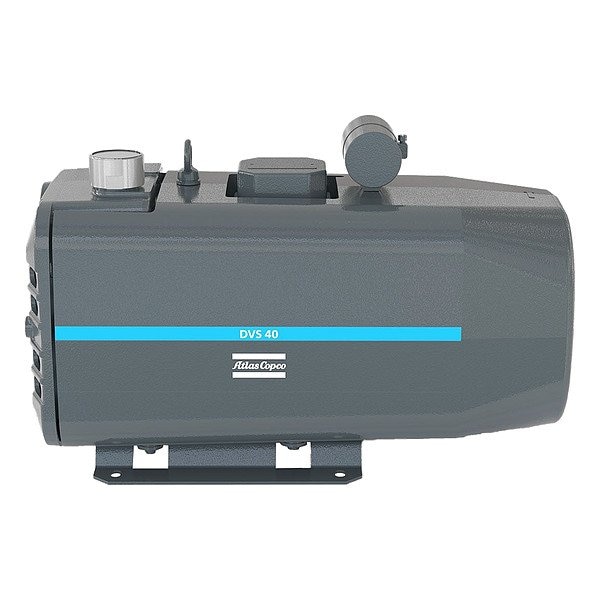

Vacuum Pump, 1.5 kW, 230V AC

  • Mfr # DVS40 230V/1/60

  • Zoro # G716137394

product price:  $5,089.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Phase
Single
Weight
92.5 lb
Overall Length
19.09 in
Pump Type
Rotary Vane Vacuum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DVS40 230V/1/60
Zoro #
G716137394
UPC #
-
Country of Origin
Italy

Dimensions

Overall Length
19.09 in
Outlet Size
1 in
Overall Width
9.05 in
Inlet Size
1 in
Overall Height
12.16 in
Wire Rope Length
19.09 in

Details

Item
Vacuum Pump
Voltage
230V AC
Phase
Single
Weight
92.5 lb
Pump Type
Rotary Vane Vacuum
Maximum Speed
1,700 RPM
Includes
Energy Efficient LE3 Electric Motor, Exhaust Silencer, Internal Inlet Filter, Noise Containing Canopy, Non-Return Valve
Duty Cycle
Continuous
Frequency
60 Hz
Application
CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking
Outlet Hose/Tube ID
1 in
Inlet Type
BSPT
Series
DVS
Maximum Discharge Pressure
1 bar
Runs Dry
Yes
Maximum Vacuum
90 torr
Outlet Hose/Tube OD
1 in
Vane Material
Graphite
Maximum Flow Rate
28 cfm
Self-Priming
Yes
Output Power
1.5 kW
Outlet Type
BSPT

Description

Vacuum Pump, Output Power 1.5 kW, Phase Single, Voltage 230V AC, Maximum Flow Rate 28 cfm, Maximum Vacuum 90 torr, Inlet Size 1 in, Inlet Type BSPT, Outlet Size 1 in, Outlet Type BSPT, Application CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking, Maximum Discharge Pressure 1 bar, Maximum Operating Pressure Not Applicable
