  6. Vacuum Pump, 15 hp, 3Phase, 208-230/460V AC

This item is Discontinued.

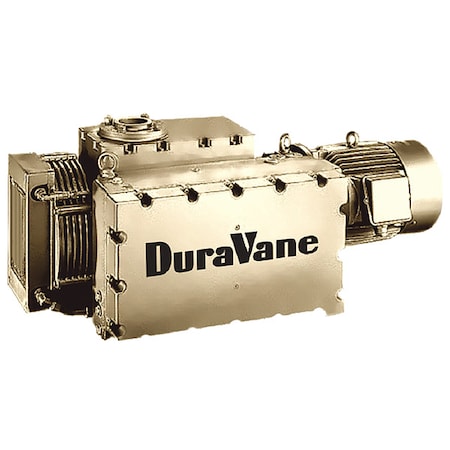

Dekker Vacuum Technologies Vacuum Pump, 15 hp, 3Phase, 208-230/460V AC RVL301LH/HH-208-230/460V/3Ph/60Hz

Vacuum Pump, 15 hp, 3Phase, 208-230/460V AC (Discontinued)

  • Mfr # RVL301LH/HH-208-230/460V/3Ph/60Hz
  • Zoro # G0185415
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RVL301LH/HH-208-230/460V/3Ph/60Hz
Zoro #
G0185415
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3 in (F)NPT
Outlet Size
3 in (F)NPT
Overall Height
20.94 in
Overall Length
53.46 in
Overall Width
23.7 in

Details

Item
Vacuum Pump
HP
15 hp
Voltage
208-230/460V AC
Full Load Amps
39.8
Free Air CFM @ 0 PSI
0.15
Max. Vacuum
29 in Hg
Free Air CFM @ 0 In. Hg
0.37
RPM
1800
Hz
60
Standards
ISO9001 2015 Certified
Phase
3
Free Air CFM @ 10 PSI
285.0
Frequency
60 Hz
Inlet Type
NPT
Maximum Flow Rate
285 cfm
Maximum Operating Temperature
167 Degrees F
Oil Capacity
11 qt
Lead-Free
No
Sound Level
79 dBA
Outlet Gender
(F)
Maximum Vacuum
29 in Hg
Current Rating
39.8 A
Application
Biotech, Chucking, Electronics, Hospitals, Laboratories, Lifting, Paper Converting, Printing, Vacuum Packing
Outlet Type
NPT
Output Power
15 hp
Weight
740 lb
Fluid Compatibility
Air, Oil
Maximum Speed
1,750 RPM
Inlet Gender
(F)
Valve Type
Gas Ballast
Maximum Operating Pressure
15 in Hg
Maximum Discharge Pressure
2 psi
Runs Dry
No

Description

Vacuum Pump, Output Power 15 hp, Phase Three, Voltage 208-230/460V AC, Maximum Flow Rate 285 cfm, Maximum Vacuum 29 in Hg, Inlet Size 3 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3 in, Outlet Type NPT, Outlet Gender Female, Application Biotech, Chucking, Electronics, Hospitals, Laboratories, Lifting, Paper Converting, Printing, Vacuum Packing, Maximum Discharge Pressure 2 psi, Maximum Operating Pressure 15 in Hg
