Shop DELHI

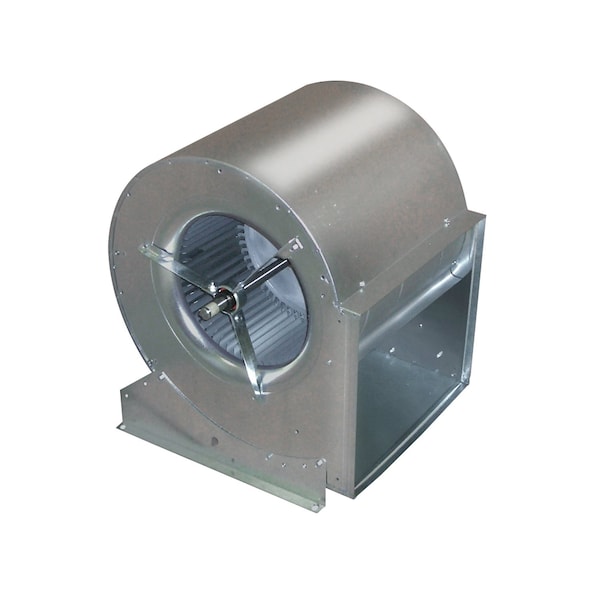

Blower, BD, Less Motor, 12-7/8 Wheel

  • Mfr # 9005464

  • Zoro # G8526612

product price:
$
348.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia. (In.)
12 7/8 in
Wheel Width (In.)
12 13/16 in
Max. Inlet Temp. (Deg. F)
250 Degrees F
Rotation
CW/CCW
Wheel Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9005464
Zoro #
G8526612
UPC #
-
Country of Origin
Canada

Dimensions

Wheel Dia. (In.)
12 7/8 in
Wheel Width (In.)
12 13/16 in
Housing Depth (In.)
19 1/2 in
Discharge Height (In.)
13 7/16 in
Shaft Dia.
1 in
Housing Width (In.)
16 5/8 in
Housing Height (In.)
20 5/8 in
Discharge Width (In.)
15 5/8 in
Inlet Diameter
10 3/8 in
Wheel Width
12 3/4 in
Outlet Height
13 3/8 in
Shaft Diameter
1 in
Outlet Width
15 5/8 in
Wheel Diameter
12 7/8 in
Overall Height
22 1/8 in
Overall Depth
19 1/2 in
Housing Width
16.6 in
Housing Depth
19.5 in
Housing Height
22.1 in
Overall Width
16 5/8 in

Details

Max. Inlet Temp. (Deg. F)
250 Degrees F
Rotation
CW/CCW
Wheel Material
Steel
Item
Blower
Housing Finish
Galvanized Steel
Max. Ambient Temp. (F)
104 Degrees F
Mounting
Multipostion
Bearing Type
Ball
Housing Material
Steel
Type
Double Inlet Forward Curve, Belt Drive, Less Motor
Includes
Mounting Hardware
Drive Type
Belt Drive
Wheel Type
Forward-Curved
Maximum Fan Speed
2,140 RPM
Resistance Properties
Corrosion Resistant
Outlet Shape
Rectangular
Flange Type
Non-Flanged
Corrosion Resistant
Yes
Market
Commercial, Industrial, Residential
Minimum Ambient Temperature
-65 Degrees F
Number of Inlets
2
Wheel Material Finish
Zinc Plated
Minimum Airflow
5,500 cfm
Maximum Static Pressure
2 1/2 in wc
Number of Discharge Positions
4
Housing Material Grade
G90
Includes Drive Package
No
For Air Type
General/Clean
Includes Motor
No
Maximum Ambient Temperature
250 Degrees F
Hazardous Location Application
No
Features
Base Feet can be Mounted for Various Discharge Positions, Blower Housings Have Extruded Holes to Give Greater Holding Power for Mounting Base Sides and Motor Bracket, Capacity Range 200 to 8000 cfm, Shaft Dimensions and Finish are Carefully Controlled to Ensure Quiet, Trouble Free Operation, Shafts for Ball Bearing Models have Keywayed Ends, the Blower Wheel has an Exclusive Centre Disc which Allows Blowers to be Used Safely at Speeds Well Above Any Normal Requirement
Includes Mounting Hardware
Yes
Chemical Resistant
No
Maximum Motor Horsepower
10 hp
Maximum Airflow
6,500 cfm
OEM Replacement
No
Assembly
Unassembled
Maximum Inlet Air Temperature
250 Degrees F
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Mount Type
Multiposition
Spark Resistant Construction Type
Not Rated
Minimum Motor Horsepower
5/16 hp
For High-Static Pressure Applications
Yes
Housing Material Finish
Galvanized

Description

Blower, Wheel Type Forward-Curved, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 12 7/8 in, Minimum Airflow 5,500 cfm, Maximum Airflow 6,500 cfm, Maximum Static Pressure 2 1/2 in wc, Maximum Inlet Air Temperature 250 Degrees F, Shaft Diameter 1 in, Bearing Type Ball, Wheel Material Steel, Housing Material Steel, Wheel Width 12 3/4 in, Number of Inlets 2, Inlet Diameter 10 3/8 in, Outlet Shape Rectangular, Outlet Height 13 3/8 in, Outlet Width 15 5/8 in
