  5. Interchangeable Core Drawer Dead Bolt, Brushed Chrome, 1-1/16 For Door Thickness, 0 Number of Keys

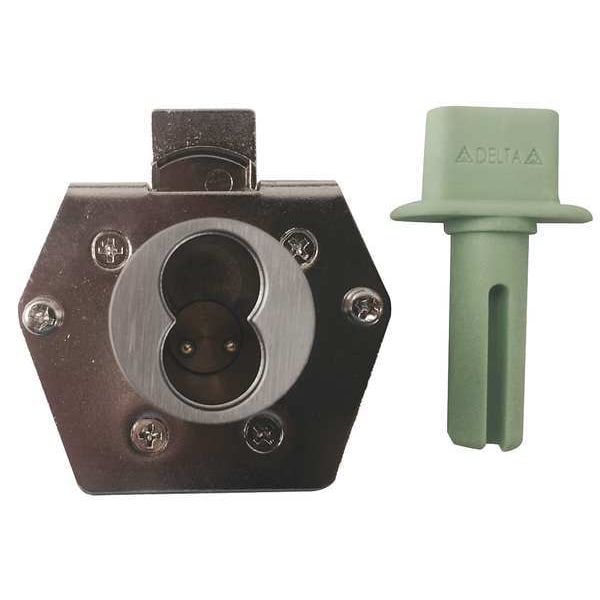

Delta Lock Interchangeable Core Drawer Dead Bolt, Brushed Chrome, 1-1/16 For Door Thickness, 0 Number of Keys G DI1125D500BCRV2 - main

Interchangeable Core Drawer Dead Bolt, Brushed Chrome, 1-1/16 For Door Thickness, 0 Number of Keys

  • Mfr # G DI1125D500BCRV2

  • Zoro # G9033561

product price:  $42.19
/ea

Key Features

For Door Thickness (In.)
1-1/16
Key Type
SFIC
Keying
Coreless
Finish
Brushed Chrome
Opens With
Key
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
G DI1125D500BCRV2
Zoro #
G9033561
UPC #
-
Country of Origin
China

Dimensions

For Door Thickness (In.)
1-1/16
Mounting Hole Dia.
1 1/8 in
For Material Thickness
1 1/16 in
Mounting Hole Dia. (In.)
1 1/8 in
Throw Length
3/4 in
Unlocking Radius
Half-Turn
Body Height
2 5/32 in
Body Thickness
2 3/16 in
Body Width
15/32 in

Details

Item
Interchangeable Core Drawer Dead Bolt
Key Type
SFIC
Keying
Coreless
Finish
Brushed Chrome
Opens With
Key
Number of Keys
0
Key Number
SFIC
Includes
(2) Mounting Screws
Interchangeable Core
Yes
Lock Type
Dead Bolt
Lock Style
Drawer
Drawer and Cabinet Lock Orientation
Vertical
Max. Latching Distance (In.)
1 27/200 in
Standards
ANSI 156.11
Mounting Hardware
Included
Drawer and Cabinet Lock Mounting Style
Rim
Unlock Turn Direction
Clockwise
Lock Body Material
Zinc Die-Cast
Latch Bolt Shape
Square
Mounting Style
Rim
Number of Mounting Holes
2
Lock Body Shape
Rectangular
Lock Body Color
Silver
Lock Body Finish
Chrome-Plated
Latch Bolt Projection
1 9/64 in
Lock Orientation
Vertical
Mounting Hardware Required
Yes
Includes Mounting Hardware
Yes
For Material
Metal, Plastic, Wood
Key Retaining
No
Cabinet Lock Type
Interchangeable Core Cabinet and Drawer Dead Bolt Locks
Rear Projection
3/8 in
Distance Between Mounting Holes
2 3/16 in
Interchangeable Core Type
SFIC
Security Level
General Security
Type
Cabinet Door

Description

Lock Style Drawer, Lock Type Dead Bolt, Opens With Key, Key Type SFIC, Brushed Chrome Finish
