  5. Interchangeable Core Drawer Dead Latch, Brushed Chrome, 1-1/16 For Door Thickness, 0 Number of Keys

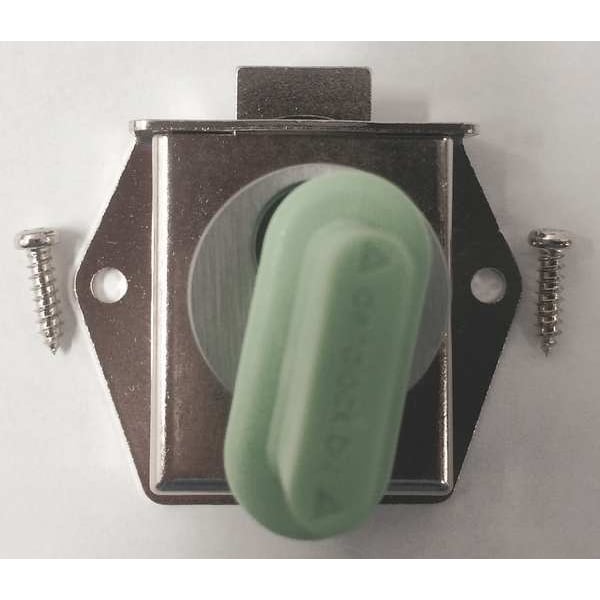

Delta Lock Interchangeable Core Drawer Dead Latch, Brushed Chrome, 1-1/16 For Door Thickness, 0 Number of Keys G DI1125L375BCMV1 - main
Shop DELTA LOCK

Interchangeable Core Drawer Dead Latch, Brushed Chrome, 1-1/16 For Door Thickness, 0 Number of Keys

  • Mfr # G DI1125L375BCMV1

  • Zoro # G9033622

product price:  $61.99
/ea

Key Features

For Door Thickness (In.)
1-1/16
Key Type
SFIC
Keying
Coreless
Finish
Brushed Chrome
Opens With
Key
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G DI1125L375BCMV1
Zoro #
G9033622
UPC #
-
Country of Origin
China

Dimensions

For Door Thickness (In.)
1-1/16
Mounting Hole Dia.
1 1/8 in
For Material Thickness
1 1/16 in
Mounting Hole Dia. (In.)
1 1/8 in
Body Thickness
2 3/16 in
Body Height
2 5/32 in
Body Width
15/32 in
Throw Length
3/4 in
Unlocking Radius
Quarter-turn

Details

Item
Interchangeable Core Drawer Dead Latch
Key Type
SFIC
Keying
Coreless
Finish
Brushed Chrome
Opens With
Key
Number of Keys
0
Key Number
SFIC
Mounting Hardware
Included
Max. Latching Distance (In.)
1 27/200 in
Standards
ANSI 156.11
Includes
(2) Mounting Screws
Lock Style
Drawer
Drawer and Cabinet Lock Mounting Style
Mortise
Lock Type
Dead Latch
Interchangeable Core
Yes
Drawer and Cabinet Lock Orientation
Vertical
Mounting Style
Mortise
Lock Body Material
Zinc Die-Cast
Latch Bolt Shape
Oval
Unlock Turn Direction
Clockwise
Latch Bolt Projection
1 9/64 in
Key Retaining
Yes
Security Level
General Security
Interchangeable Core Type
SFIC
For Material
Metal, Plastic, Wood
Number of Mounting Holes
2
Lock Orientation
Vertical
Lock Body Finish
Chrome-Plated
Lock Body Color
Silver
Rear Projection
3/8 in
Mounting Hardware Required
Yes
Includes Mounting Hardware
Yes
Distance Between Mounting Holes
2 3/16 in
Lock Body Shape
Rectangular
Cabinet Lock Type
Interchangeable Core Cabinet and Drawer Deadlatch Locks
Type
Cabinet Door

Description

Lock Style Drawer, Lock Type Dead Latch, Opens With Key, Key Type SFIC, Brushed Chrome Finish
