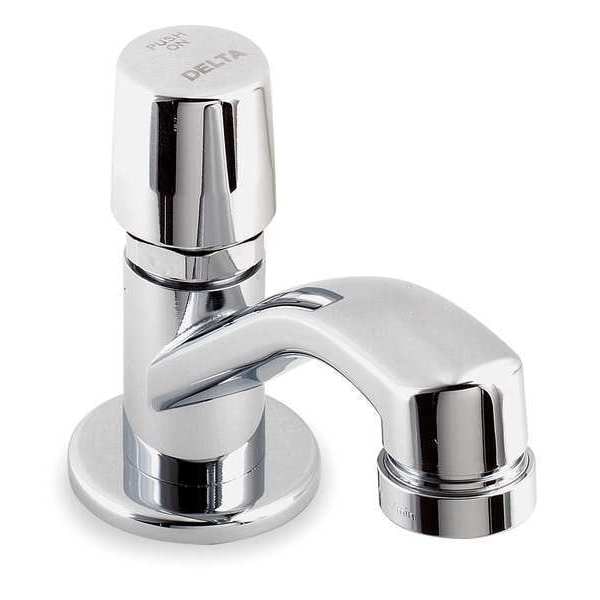

Delta Metering Single Hole Lavatory Faucet, Single Hole Mount, Chrome Single hole installation Hole 701LF-HDF - main

Metering Single Hole Lavatory Faucet, Single Hole Mount, Chrome Single hole installation Hole

  • Mfr # 701LF-HDF

  • Zoro # G5297783

product price: $190.99
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Metering
Handle Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
701LF-HDF
Zoro #
G5297783
UPC #
034449702928
Country of Origin
United States

Dimensions

Height
3-1/2 in
Spout Length
4-1/4
Overall Height
3.5
Spout Height
3 1/2 in
Depth (In.)
5.75
Overall Width
2
For Surface Thickness - Maximum
2 1/2 in
Spout Height - Maximum
3 1/2 in
Spout Outlet Height
1 1/2 in
Inlet Connection Size
1/2 in
For Mounting Hole Diameter - Maximum
2 in
For Mounting Hole Diameter - Minimum
1 in

Details

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Metering
Handle Material
Metal
Number of Handles
1
Body Material
Brass
Weight
1.35 lb
Item
Single Hole Lavatory Faucet
Replacement Cartridge
49X978
ADA Compliance
Not ADA Compliant
Faucet Type
Bathroom Sink Faucet
Standards
ASME A112.18.1/CSA B125.1
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Faucet Spout
Rigid
Valve Type
Metering valve
Temp. Control
Yes
Battery Charger CEC Compliant
CEC Compliant
Green Certification or Other Recognition
WaterSense Certified
Connection
1/2 in
Power Source
Manual
Valve Type - Faucets
Hot/Cold Cartridge
Series
Delta Commercial
Temperature Control
Non-Adjustable Temperature
Max. Mounting Hole Center Distance
Single Hole
Spout Reach
4 3/4 in
Application
Commercial
Outlet Type
Aerator
For Location
Bathroom
Number of Mounting Holes
1
Flow Type
Spray
Spout Shape
Arc
Ligature Resistance
No
CEC Compliance
CEC Compliant
Pressure - Maximum
60 psi
Vandal Resistance
Vandal-Resistant Outlet
Flow Rate - Maximum
0.5 gpm
Compatible Cartridge Manufacturer Part Number
RP72773
Operation Method
Manual
For Water Temperature
Hot/Cold
Inlet Connection Gender
Male
Includes Drain
Drain Not Included
Inlet Connection Type
IPS
Water Supply Type
Single Tempered Line
Spout Style
Fixed
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: MA
