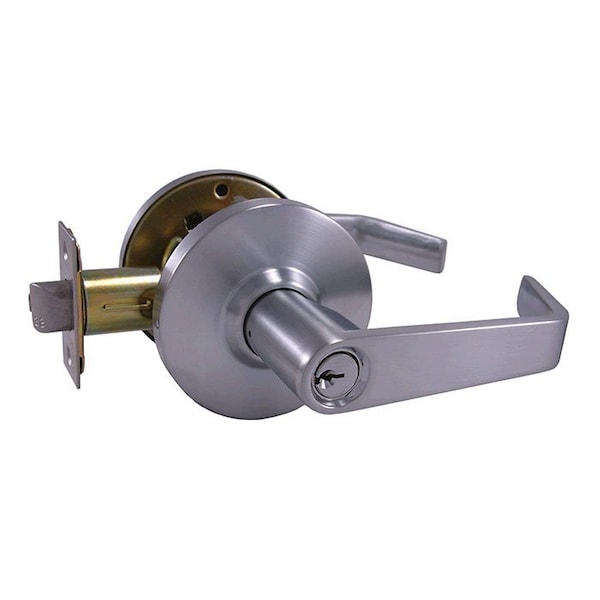

Door Lever Lockset, 1 3/8-1 3/4" Thick

Name: Door Lever Lockset, 1 3/8-1 3/4" Thick
Brand: Design Hardware
SKU: G809481144
Price: 96.39 USD
Availability: InStock

96.39

/ea

ADA Compliant

Yes

Latch Bolt/Dead Bolt

Dead Latch

Lockset Type

Mechanical

Strike Plate Lip Length

1 1/4 in

Number of Keys

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Strike Plate Lip Length: 1 1/4 in
Door Thickness - Maximum: 1 3/4 in
Strike Plate Height: 4 7/8 in
Fits Chest Size: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Removable Thru Bolts
Door Thickness - Minimum: 1 3/8 in
Strike Plate Width: 1 1/4 in

ADA Compliant: Yes
Latch Bolt/Dead Bolt: Dead Latch
Lockset Type: Mechanical
Number of Keys: 2
Includes Core: Core Included
Keyway Type: Schlage C
Lockset Function: Entrance, Office
Standards: ANSI A156.2, UL Listed
Includes: (2) Keys, Combination Screws for Wood or Metal Doors and Frames
Lockset Style: Rose
ANSI/BHMA Finish: Satin Chromium-Plated
Visual Indicator Message: No Message
ANSI Grade: 2
Includes Hardware: Hardware Included
Item: Door Lever Lockset
Locking/Unlocking Access - Inside: Push Button
Ligature-Resistant: Not Ligature-Resistant
Locking/Unlocking Access - Outside: Keyway
Number of Pins: 6
Mortise/Cylindrical: Cylindrical
Cylinder Core Type: Conventional Core Cylinder
Backset: 2 3/4 in
Lockset Function ANSI Code: F82
Hand Orientation: Non-Handed
Application: Medium to High Traffic
Lockset Handle Type: Lever
Trim Plate Shape: Round
Features: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Removable Thru Bolts
