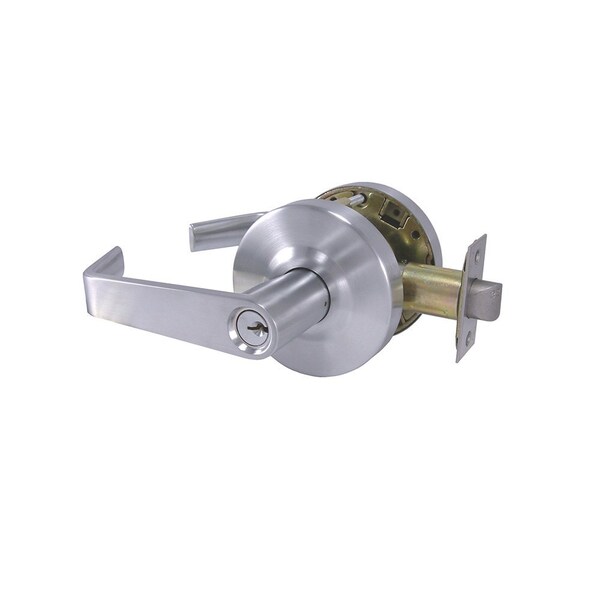

Door Lever Lockset, 1 3/8-1 3/4" Thick

Name: Door Lever Lockset, 1 3/8-1 3/4" Thick
Brand: Design Hardware
SKU: G509431470
Price: 101.99 USD
Availability: InStock

101.99

/ea

Free Shipping & Returns

Lockset Function ANSI Code

F86

Strike Plate Height

4 7/8 in

Strike Plate Lip Length

1 1/4 in

Lockset Handle Type

Lever

ANSI/BHMA Finish

Satin Chromium-Plated

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: DH-V-86-F-26D
Zoro #: G509431470
UPC #: -
Country of Origin: China
Item: Door Lever Lockset
Lockset Function ANSI Code: F86
Lockset Handle Type: Lever
ANSI/BHMA Finish: Satin Chromium-Plated
Trim Plate Shape: Round
ADA Compliant: Yes
Number of Pins: 6
Lockset Style: Rose
Hand Orientation: Non-Handed
Backset: 2 3/4 in
Mortise/Cylindrical: Cylindrical
Visual Indicator Message: No Message
Locking/Unlocking Access - Inside: Not Lockable
Lockset Type: Mechanical
Latch Bolt/Dead Bolt: Dead Latch
Includes: (2) Keys, Combination Screws for Wood or Metal Doors and Frames
Cylinder Core Type: Conventional Core Cylinder
Lockset Function: Storeroom
Keyway Type: Schlage C
Locking/Unlocking Access - Outside: Keyway
Includes Hardware: Hardware Included
Includes Core: Core Included
Ligature-Resistant: Not Ligature-Resistant
Number of Keys: 2
ANSI Grade: 2
Standards: ANSI A156.2, UL Listed
Features: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Clutching Levers Standard for Vandal Resistance on Locking Functions

Strike Plate Height: 4 7/8 in
Strike Plate Lip Length: 1 1/4 in
Strike Plate Width: 1 1/4 in
Fits Chest Size: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Clutching Levers Standard for Vandal Resistance on Locking Functions
Door Thickness - Minimum: 1 3/8 in
Door Thickness - Maximum: 1 3/4 in
