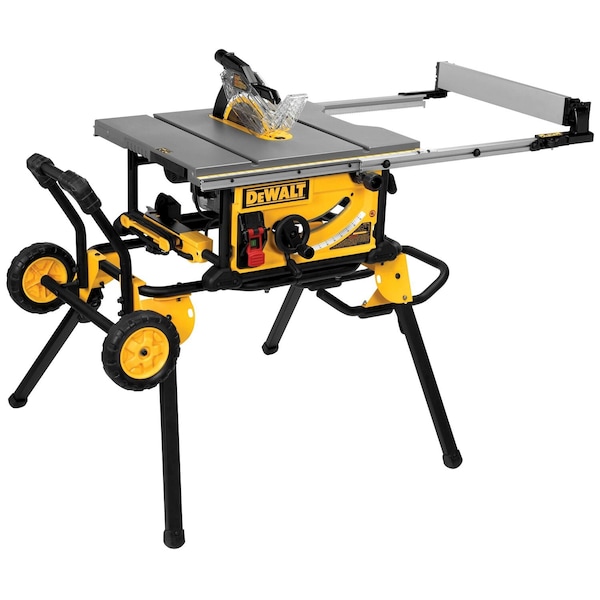

10" Jobsite Table Saw 32 - 1/2" (82.5cm) Rip Capacity, and a Rolling Stand

  • Mfr # DWE7491RS

  • Zoro # G7420174


original price: $699.00
7% off
new price: $649.00
/ea
Free Shipping & Returns

Key Features

Blade Dia.
10 in
Max. Cut Width Right of Blade
32 1/2 in
Voltage
120 V AC
Bevel Angle Range
-2 Degrees to 45 Degrees
Max. Cutting Depth @ 0 Deg.
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DWE7491RS
Zoro #
G7420174
UPC #
885911329163
Country of Origin
Mexico

Dimensions

Blade Dia.
10 in
Max. Cut Width Right of Blade
32 1/2 in
Max. Cutting Depth @ 0 Deg.
2 1/4 in
Max. Cutting Depth @ 45 Deg.
2 1/4 in
Exhaust Port Size
2 1/4 in
Overall Depth
26 3/4 in
Depth of Cut @ 90 Deg.
3-1/8"
Depth of Cut @ 45 Deg.
2-1/2"
Overall Width
26 1/2 in
Arbor Size
5/8 in
Overall Height
12 3/4 in
Table Length
21 7/8 in
Max. Cut Width Left of Blade
12 in
Table Width with Extension
26 3/8 in
Table Width
26 3/8 in
Cord Length
6 ft
Cutting Width Left of Blade - Maximum
12 in
Cutting Depth at 45 Degrees - Maximum
2 1/4 in
Cutting Width Right of Blade - Maximum
32 1/2 in
Cutting Depth at 0 Degrees - Maximum
2 1/4 in
Blade Diameter
10 in

Details

Item
Table Saw
Voltage
120 V AC
Bevel Angle Range
-2 Degrees to 45 Degrees
Current
15 A
Max. Blade Speed
4,800 RPM
Phase
Single-Phase
Amps
15.0
Hz
60
Includes
10 in 24-Tooth Carbide Blade, Miter Gauge, Push Stick, Rolling Stand
Table Surface w/Extension
26-3/8 in x 48-5/8 in
Table Front of Blade
7 3/4 in
Material
Cast Iron
Motor HP
2
Blade Tilt
Right
Corded/Cordless
Corded
Corded/Banded
Corded
Cutting Capacity Rip Right
32-1/2"
Cutting Capacity Rip Left
24"
No Load RPM
4800
Series
DWE7491
Variable Speed
Yes
Arbor Shape
Round
Stand Type
Rolling
Power Source
Corded
Table Saw Type
Portable
Automatic Blade Safety Retraction
Yes
Horsepower
2
Shop By
Hot Buys
Amps AC
15
Bevel Angle - Minimum
-2 Degrees
Speed Control
Variable
Blade Speed - Maximum
4,800 RPM
Includes Automatic Blade Safety Retraction
No Automatic Blade Safety Retraction
Bevel Angle - Maximum
45 Degrees

Description

The DWE7491RS 10" Jobsite Table Saw 32 - 1/2" Rip Capacity, and a Rolling Stand has a 15 Amp motor and 32-1/2" rip capacity to allow cutting of large and hardwood materials. Features tool-free guarding component adjustments and fast, accurate fence adjustments. Rolling stand designed for easy set up and breakdown with excellent stability.


  • • Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate

  • • 3-1/8" depth-of-cut at 90 and 2-1/4" at 45

  • • 21-7/8" x 26 - 3/8" table provides superior material support

Designed for:


  • • Cabinet Installers: ripping filler boards

  • • (1) Rolling Stand

Additional Features:


  • • Patented material support, can be used for narrow rip cuts

  • • 32-1/2" rip capacity easily cuts a variety of larger shelving and trim materials

  • • Onboard storage system provides easy access to the Blade Guard Assembly, fence, riving knife, miter gauge, wrenches, push stick, and cord wrap when not in use

  • • Rolling stand designed for easy set up and breakdown with excellent stability

  • • Telescoping fence rails retract to create a small, portable package

  • • Flip over ripping fence allows for narrow rip cuts

  • • 15 amp Motor quickly rips through hardwoods with ease

  • • 2-1/2" Dust Collection Port easily connects to a vacuum for efficient dust extraction
