  11. 12V MAX* 2 x 360 Green Line Laser

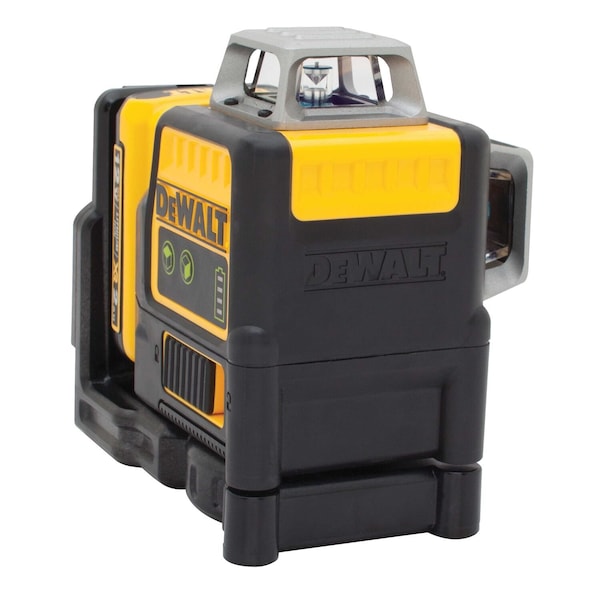

Dewalt 12V MAX* 2 x 360 Green Line Laser DW0811LG - main

12V MAX* 2 x 360 Green Line Laser

  • Mfr # DW0811LG

  • Zoro # G5756637

product price: $749.00
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
2
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW0811LG
Zoro #
G5756637
UPC #
-
Country of Origin
China

Dimensions

Width
12 29/32 in
Length
18 1/2 in
Height
6 17/64 in
Overall Height
7 in
Overall Width
17 1/4 in
Overall Depth
13 in
Tripod Thread Size
1/4"-20, 5/8"-11

Details

Item
Cross Line Laser
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
2
Number of Dots
0
Number of Lines
2
Laser Color
Green
Range w/o Detector
100 ft
Horizontal/Vertical
Horizontal and Vertical
Accuracy
+/-1/8 in @ 30 ft, 0.46 in @ 100 ft
Preset Angle
None
Grade Capability
Dual
IP Rating
IP65
Number of Scanning Modes
0
Power Source
12V Battery
Range w/Detector
165 ft
Plumb Down
No
Visual/Audible Indicators
No
Beam Color
Green
Interior/Exterior
Interior and Exterior
Rotating Speed
Non-Rotating
Plumb Up
No
Slope
+/- 8 Degrees
Number of Plumb Vials
0
Auto Shutoff
No
Number of 45 Degree Vials
0
Number of Level Vials
0
Laser Class
Class 2
Total Number of Vials
0
Features
Integrated Magnetic Bracket, Locking Pendulum
Includes
Case, Charger, Enhancement Glass, Bracket, Target
Battery Type
Li-Ion
Laser Beam Color
Green
Working Range without Detector - Maximum
100 ft
Number of 45 Vials
0
Number of Planes
0
Indoor Range - Maximum
50 ft
Automatic Shutoff
No
Use Location
Indoor, Outdoor
Mount Type
Magnetic, Mounting Bracket
Working Range with Detector - Maximum
165 ft
Includes Batteries
Batteries Included

Description

The DEWALT DW0811LG 12V MAX 2 x 360 Green Line Laser has dual 360 degree line lasers to aid in full room layout. It provides line visibility and alignment for wall track layout. The full time pulse mode allows use with detector while maintaining full brightness for visibility and extended range. The rear mounted magnets allow flush attachment to metal track and steel.


  • • 12V MAX* Li-ion Rechargeable Battery Platform For long run time and the convenience of a rechargeable battery

  • • Integrated Magnetic Bracket with 1/4" and 5/8" Thread Rear-mounted magnets allow flush attachment to metal and steel track

  • • Full-Time Pulse Mode Allows Use with Detector Maintains full brightness for visibility and extends range

Designed for:


  • • Plumbing Walls

  • • (1) Barr

  • • * Maximum initial battery pack voltage (measured without a workload) is 12 volts. Measured under a workload, nominal voltage is 10.8.

Additional Features:


  • • Durable Design Over-molded housing and IP65 debris/water resistance

  • • Locking Pendulum To help prevent damage to internal components

Restrictions

Hazardous material
