This item is Discontinued.

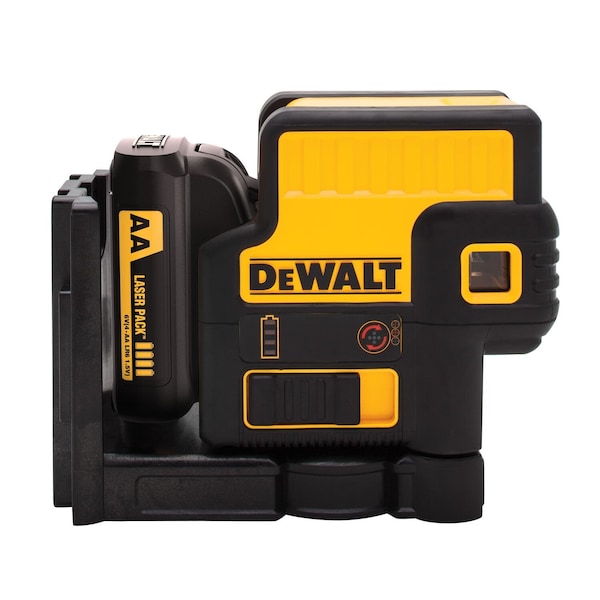

Dewalt 12V MAX* Compatible 5 Spot Red Laser DW085LR

12V MAX* Compatible 5 Spot Red Laser (Discontinued)

  • Mfr # DW085LR
  • Zoro # G2868177
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW085LR
Zoro #
G2868177
UPC #
-
Country of Origin
China

Dimensions

Thread Size
1/4"-20, 5/8"-11
Height
7 in
Length
17 13/32 in
Width
13 1/2 in
Overall Width
13 1/2 in
Tripod Thread Size
1/4"-20, 5/8"-11
Overall Height
7 in
Overall Depth
17 3/8 in

Details

Item
Dot Laser
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
5
Number of Dots
5
Number of Lines
0
Laser Color
Red
Range w/o Detector
100 ft
Number of Level Vials
0
Number of Plumb Vials
0
Number of Scanning Modes
0
Total Number of Vials
0
Power Source
12V Li-Ion Battery
Laser Class
Class 2
Auto Leveling Range
+/-5 Degrees
Features
2m/6.5ft Drop Rating, Pivot Thread Mount, Up/Down/Front/Left/Right Spots
Auto Shutoff
No
Number of 45 Degree Vials
0
IP Rating
IP65
Plumb Up
Yes
Includes
Case, Bracket, Enhancement Glass, Target
Accuracy
+/-1/8 in
Visual/Audible Indicators
Yes
Slope
+/- 10 Degrees
Rotating Speed
Non-Rotating
Grade Capability
Single
Range w/Detector
100 ft
Plumb Down
Yes
Battery Type
AA
Level Indicators
Audible, Visual
Use Location
Indoor, Outdoor
Laser Beam Color
Red
Working Range without Detector - Maximum
100 ft
Working Range with Detector - Maximum
100 ft
Mount Type
Magnetic, Mounting Bracket
Number of Planes
0
Plumb Direction
Plumb Down, Plumb Up
Number of 45 Vials
0
Includes Batteries
Batteries Included
Automatic Shutoff
No
Self-Leveling Range
+/-5 Degrees

Description

With the 12V MAX* lithium-ion rechargeable battery platform, the DEWALT® 5 Spot Red Laser offers great visibility, durability and convenience. With an IP65 debris/water resistance rating and a 2-meter drop protection, this laser equips users to work in the toughest conditions.


  • • Integrated Magnetic Bracket

  • • 2M/6.5ft Drop Rating

  • • IP65 Rated

Designed for:


  • • Decking

  • • (1) AA Starter Pack

  • • * Maximum initial battery pack voltage (measured without a workload) is 12 volts. Measured under a workload, nominal voltage is 10.8.

Additional Features:


  • • 12V MAX* Compability

  • • Locking Pendulum

  • • 3 Different Spot Configurations

  • • Up/Down/Front/Left/Right Spots

  • • +/- 1/8 in. Accuracy

  • • 100ft Range

  • • Pivot Thread Mount

  • • 1/4 20 in & 5/8 11 in thread mount
