  11. 12V MAX* Compatible Red Cross Line Laser
Dewalt 12V MAX* Compatible Red Cross Line Laser DW088LR - main

12V MAX* Compatible Red Cross Line Laser

  • Mfr # DW088LR

  • Zoro # G7313419

product price: $315.00
/ea
Free Shipping & Returns

Key Features

Length
18 1/2 in
Accuracy
+/-0.125 in
Width
12 29/32 in
Features
Full Time Pulse Mode
Includes
Bracket, Laser Glasses, Target
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW088LR
Zoro #
G7313419
UPC #
-
Country of Origin
China

Dimensions

Length
18 1/2 in
Width
12 29/32 in
Height
6 17/64 in
Overall Width
13 1/2 in
Overall Height
7 in
Overall Depth
17 5/16 in

Details

Accuracy
+/-0.125 in
Features
Full Time Pulse Mode
Includes
Bracket, Laser Glasses, Target
Number of 45 Degree Vials
0
Number of Level Vials
1
Number of Plumb Vials
0
Number of Lines
2
Power Source
12V Lithium-Ion Rechargeable Battery
Range w/o Detector
50 ft
Laser Color
Red
Interior/Exterior
Interior and Exterior
Range w/Detector
165 ft
Horizontal/Vertical
Horizontal and Vertical
Plumb Up
No
Beam Color
Red
IP Rating
IP65
Plumb Down
No
Laser Usage Environment
Exterior, Interior
Leveling Type
Electronic Self-Leveling
Item
Cross Line Laser
Laser Projection
Horizontal, Vertical
Number of Dots
0
Preset Angle
None
Number of Beams
2
Rotating Speed
Non-Rotating
Slope
+/- 8 Degrees
Visual/Audible Indicators
No
Grade Capability
Dual
Total Number of Vials
0
Laser Class
Class 2
Number of Scanning Modes
0
Auto Shutoff
No
Green Environmental Attribute
Product is Rechargeable
Laser Beam Color
Red
Automatic Shutoff
No
Mount Type
Mounting Bracket
Number of Planes
0
Working Range without Detector - Maximum
50 ft
Indoor Range - Maximum
50 ft
Use Location
Indoor, Outdoor
Working Range with Detector - Maximum
165 ft
Battery Type
Li-Ion
Includes Batteries
Batteries Included
Number of 45 Vials
0

Description

The DEWALT DW088LR 12V MAX* Compatible Red Cross Line Laser is a self-leveling cross line laser rated for use in interior and exterior leveling and layout applications. It projects red horizontal and vertical lines; powered by a rechargeable 12V lithium-ion battery platform.


Key Features of the DEWALT DW088LR Red Cross Line Laser:

  • Self-Leveling: Electronic self-leveling system rated to align within +/-0.125 in. accuracy.

  • Power Source: Operates on a 12V lithium-ion rechargeable battery; batteries are included.

  • Laser Projection: Projects two red beams—horizontal and vertical—for dual grade functionality.

  • Full-Time Pulse Mode: Supports visibility at distances up to 165 ft when used with compatible detector.

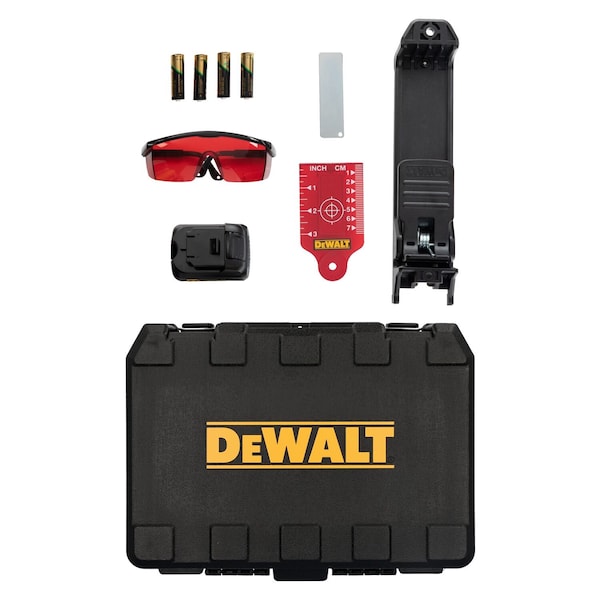

  • Mounting Options: Integrated magnetic bracket with rear-mounted magnets enables attachment to metal surfaces; includes mounting bracket, laser glasses, and target.

  • Durability: Over-molded housing rated IP65 per IEC standard for dust- and water-resistance.*

  • Slope Capability: Rated for slopes up to +/-8 degrees without manual adjustment during indoor or outdoor use.

(*If “per IEC standard” is not part of supplier-provided language or certification info, omit this addition.)
