This item is Discontinued.

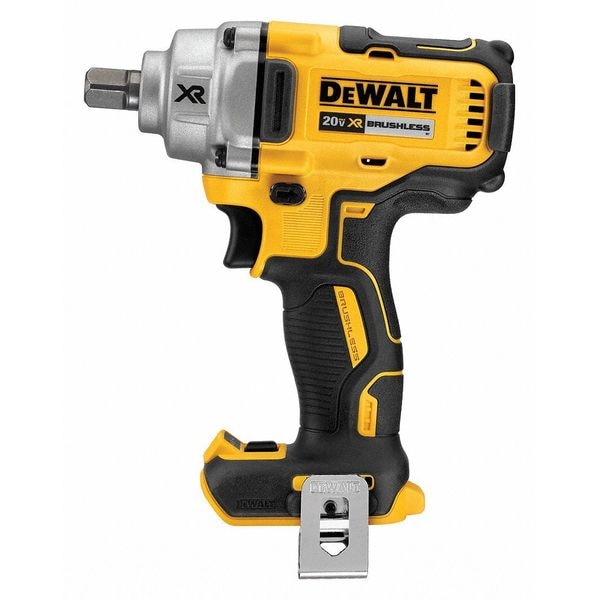

Dewalt 20V 1/2" Pin Detent DCF894B

20V 1/2" Pin Detent (Discontinued)

  • Mfr # DCF894B
  • Zoro # G3898190
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCF894B
Zoro #
G3898190
UPC #
885911509473
Country of Origin
United States

Dimensions

Drive Size
1/2 in
Overall Length
7 in
Head Height
8 1/4 in
Head Width
2 7/8 in
Head Length
8 1/4 in

Details

Voltage
20 V DC
Max. Torque
330 ft-lb
Includes
Mid-Range 1/2 in Impact Wrench
Number of Batteries Included
0
Power Source
Cordless
Impacts per Minute
3,100
Free Speed
2,000 RPM
Fastening Torque
330 ft-lb
Brushless Motor
Yes
Drive Style
Standard
Number of Speed Settings
2
Cordless Tool Battery Type
Li-Ion
Corded/Banded
Cordless
Handle Type
Pistol Grip
Corded/Cordless
Cordless
Series
MAX
Features
3 Mode Settings, LED Light, Lightweight Design, Precision Wrench Control Feature
Tool Weight
3.5 lb
Drive Configuration
Straight
Anvil Impact Action
Mechanical
Battery Included
No
Clutch Style
Detent Pin Anvil
Cordless Tool Kit Contents
(1) Bare Tool
Battery Series
20V MAX* XR(R)
Retainer Type
Pin Detent
Wireless Tool Tracking
No
Actuation
Trigger
Handle Material
Plastic
Power to Weight Ratio
172.4 ft-lb/lb
Case Included
No
Tool Style
Compact
Lock-Off Switch
Yes
Housing Material
Plastic
Impact Rated
Impact Rated
Breakaway Torque
600 ft-lb
Reaction Bar
No
Charger Included
No
Built-In Light
Yes
Includes Battery
Tool Only
Drive Shape
Square
Torque - Maximum
330 ft-lb
Throttle Type
Trigger
Number of Chargers Included
0
No Load Speed
2,000 RPM
Anvil Style
Standard
Includes Case
Case Not Included
Includes Reaction Bar
No Reaction Bar
Includes Lock-Off Switch
Lock-Off Switch Included
Motor Type
Brushless

Description

The DEWALT DCF894B 20V 1/2" Pin Detent is a cordless mid-range impact wrench suitable for fastening and loosening applications requiring specified torque in compact spaces. Powered by a brushless motor, this tool provides up to 330 ft-lbs max fastening torque at a weight of 3.48 lbs while maintaining a lightweight and ergonomic design for user comfort during extended use. Battery and charger are sold separately.


Key Features of the DEWALT DCF894B 20V 1/2" Pin Detent Cordless Impact Wrench:

  • Torque Output: Provides up to 330 ft-lbs max fastening torque at a weight of 3.48 lbs, suitable for demanding tasks in tight areas.

  • Precision WrenchTM Control: Offers added control with features that help prevent overtightening (forward) and fastener run-off (reverse).

  • Brushless Motor: Brushless motor is used.

  • Variable Speed Trigger: Variable speed trigger allows adjustment according to application.

  • Three Mode Settings: Three mode settings available.

  • LED Light: Included

  • Compact Design: Compact, lightweight construction
