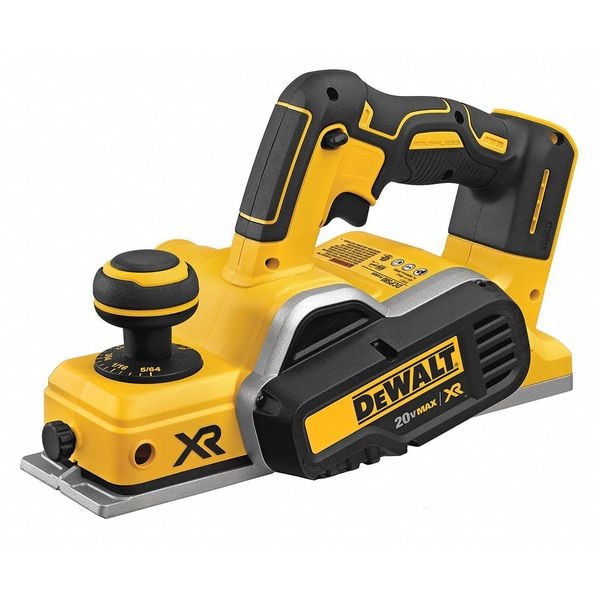

20V MAX* XR(R) Brushless Cordless Planer (Tool Only)

The DCP580B features a brushless motor for maximum efficiency that helps to maintain speed under load. The brushless planer features a 3-1/4 in width capacity and ability to adjust depth at 1/256 in adjustments with a rebate capacity of 5/64 in The planer weighs 6.8 lbs and operates on the DEWALT 20V MAX* battery system. Lightweight and cordless, the planer can be easily transported around the jobsite without the hassle of a cord. Battery, charger and dust bag sold separately.

• • Brushless Motor provides power and runtime


• • 30,000 cuts per minute achieve a fast removal rate


• • 5/64 in. (2 mm.) maximum depth of cut

Designed for:

• • (1) Guide Fence


• • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Additional Features:

• • Calibrated depth adjustment knob to 1/256 in. (0.01 mm. approximately)


• • Precision-machined front and back aluminum shoes ensure parallelism of cut


• • Kickstand allows user to rest the planer on work surface without gouging the material


• • Precision machined groove in front shoe allows for edge chamfering


• • Poly-V drive belt provides increased belt durability


• • Ergonomically designed handle provides greater comfort and less user fatigue


• • Replacement blades DW6654 Part Number: N447366


• • Dust Bag (not included) DWV9390 Part Number N455893 + N455892
