Shop DEWALT

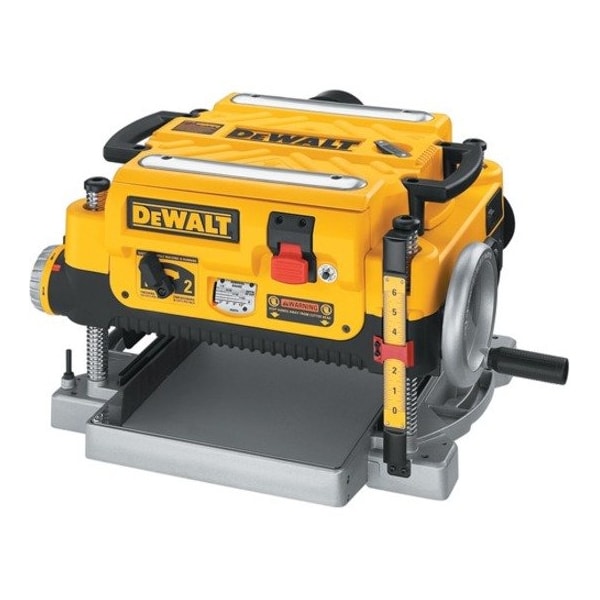

13 in. Three Knife, Two Speed Thickness Planer

  • Mfr # DW735
  • Zoro # G0396006
product price:
$
780.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Material
Cast Aluminum
Overall Depth
22 1/2 in
Corded/Cordless
Corded
Feed Rates (FPM)
14/26
Cutting Width (In.)
13 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DW735
Zoro #
G0396006
UPC #
028877349046
Country of Origin
China

Dimensions

Overall Depth
22 1/2 in
Cutting Width (In.)
13 in
Cutting Thickness (In.)
6 in
Overall Depth (In.)
22 1/2 in
Depth of Cut (In.)
1/8 in
Overall Width (In.)
19 1/2 in
Overall Height (In.)
13 1/2 in
Overall Width
19 1/2 in
Overall Height
13 1/2 in
Height
18.8"
Maximum Material Height
6 in
Maximum Planer Depth of Cut
1/8 in
Maximum Material Width
13 in
Blade Width
13 in

Details

Item
Portable Planer
Material
Cast Aluminum
Corded/Cordless
Corded
Feed Rates (FPM)
14/26
Construction
Cast Aluminum Base
Features
2 Speed Transmission And Carriage Lock, 3 Knife Cutters, Fan Chip Ejection
Includes
3 in Dust Hose Adapter And Ejection Chute
Cuts per Inch
96/179
No Load RPM
10,000 RPM
Amps
15 A
Corded/Banded
Corded
Motor HP
2 hp
Cuts per Minute
30,000
Speed
2
Voltage
120V AC
Tool Weight
92 lb
Phase
Single-Phase
Dust Collection
Not Included
Kit Contents
Blade Change T-Wrench, Dust Hose Adapter, Thickness Planer Crank Handle
Cutter Speed
10,000 RPM
Cutter Type
Straight Blade
Maximum Speed
20,000 RPM
Power Source
Corded
Planer Type
Benchtop
Plug Type
Three-Prong
Current
15 A
Number of Speeds
2
Horsepower
2 hp
Planer Feed Rate
14/26 fpm
Number of Blades
3

Description

The DW735 13 in. Three Knife, Two Speed Thickness Planer is powered by a 15 Amp motor to easily managing large cuts in wider materials. Three-knife cutter head with 10,000 rpm and feed speed options for 96 or 179 CPI provide optimal performance.


  • • Powerful 15 amp, 20,000 rpm motor handles larger cuts in wider materials with ease

  • • Three-knife cutter head with 10,000 rpm cutter-head speed delivers 30% longer knife life and makes knife change faster and easier

  • • Two-speed gear box allows users to change feed speed to optimizing cuts per in. at 96 or 179 CPI

Designed for:


  • • Thickness Plaining Wood

  • • (1) Dust Hose Adapter, Thickness Planer Crank Handle, Blade Change T-Wrench

Additional Features:


  • • Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine

  • • 19-3/4 in. cast aluminum base is 2X more rigid than a standard 10 in. base and folding tables

  • • Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user

  • • Material removal gauge and extra large, thickness scale delivers accurate cuts with every pass

  • • Extra large, turret depth stop allows user to return to most frequently used thicknesses with ease
