This item is Discontinued.

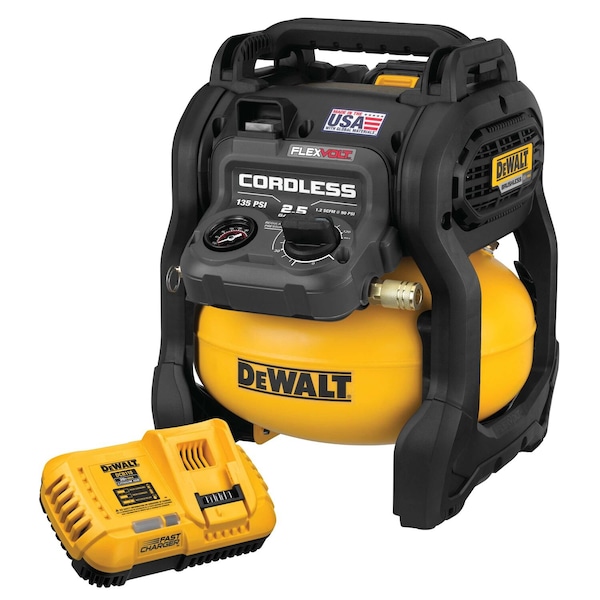

Dewalt Air Compressor, 0.40 HP, 2.5 gal. Tank DCC2560T1

Air Compressor, 0.40 HP, 2.5 gal. Tank (Discontinued)

  • Mfr # DCC2560T1
  • Zoro # G1573542
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DCC2560T1
Zoro #
G1573542
UPC #
885911513678
Country of Origin
United States

Dimensions

Tank Size
2.5 gal.
Overall Length
14.5 in
Overall Height
16 in
Overall Width
12 in
Tank Size - Air Compressor
2.5 gal
Outlet Size
1/4 in
Air Tank Size
2.5 gal

Details

Max. Pressure
135 psi
HP
0.4
Free Air CFM @ Max. Pressure
1.2 @ 90 psi
Includes
60V Battery, Charger
Compressor Type
Cordless Air Compressor
Weight
20 lb
Standards
ISO 1217, ISO 3477
Item
Portable Air Compressor
Max. Pressure - Air Compressor
135 psi
Tank Style - Air Compressor
Pancake
Cylinder Material
Aluminum
Lubrication Type - Air compressor
Oil Free
Item - Air Compressor
Portable Air Compressor
(F)NPT Outlet
1/4 in
Weight - Air Compressor
20 lb
dBA @ 3 Feet
79.0
Free Air CFM @ Max. Pressure - Air Compressor
0.9
Motor Type
Brushless
HP - Air Compressor
0.4 hp
Free Air CFM @ 90 PSI - Air Compressor
1.2
Motor RPM
3,400 RPM
Lubrication Type
Oil Free
Maximum Speed
3,400 RPM
Free Air Flow Rate
1.2 cfm
Duty Cycle
Continuous
Sound Level
79 dBA
Input Voltage
60V AC
Valve Type
Ball
Output Power
0.4 hp
Electrical Connection
Cordless
Maximum Operating Pressure
135 psi
Pump Type
Piston
Air Tank Style
Pancake
Outlet Type
NPT
Outlet Gender
Female

Description

The DEWALT DCC2560T1 Air Compressor is a portable, cordless electric air compressor intended to provide portability and is compatible with standard pneumatic tools. Powered by a 60V MAX* FLEXVOLT lithium-ion battery, this unit features a 2.5-gallon tank and provides a maximum of 1,220 nails per charge under specified test conditions**, supporting extended use on the jobsite without frequent recharging.


Key Features of the DEWALT DCC2560T1 Air Compressor:

  • Brushless Motor: Paired with a heavy-duty oil-free pump for cordless operation while supporting operation comparable within the specifications of certain corded models.

  • OneTurnTM Regulator: Enables pressure adjustments via integrated regulator.

  • Portability: Weighs only 21.5 lbs and includes a roll cage designed to protect the unit during handling for added durability during transport or use in demanding environments.

  • Noise Level: Operates at 79 dBA (tested per ISO 3477), which is suitable for work areas where lower noise output is preferred.

  • Performance: Delivers 1.2 SCFM at 90 PSI (tested per ISO 1217) to support various pneumatic tasks.

  • Battery Included: Comes with one DCB606 FLEXVOLT Li-ion battery for immediate use out of the box.

  • Manufacturing Origin: Made in the USA with global materials.

Restrictions

Hazardous material
