  11. COMPACT 20V LASERS Crossline

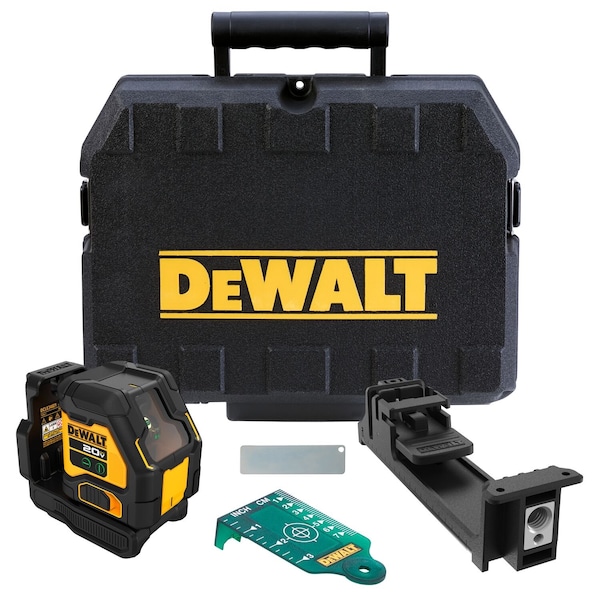

Dewalt COMPACT 20V LASERS Crossline DCLE34021B - main

COMPACT 20V LASERS Crossline

  • Mfr # DCLE34021B

  • Zoro # G710040249

product price: $399.00
/ea
Free Shipping & Returns

Key Features

Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
2
Number of Lines
0
Battery Type
20V Max
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCLE34021B
Zoro #
G710040249
UPC #
885911832281
Country of Origin
Viet Nam

Details

Item
Laser
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
2
Number of Lines
0
Battery Type
20V Max
Laser Class
Class 2
Features
Last Mode Memory
Includes
Bracket/Tripod Mount, Case, Target
Accuracy
+/-1/8 in @ 30 ft
IP Rating
IP54
Laser Beam Color
Green
Working Range with Detector - Maximum
330 ft
Operating Temperature - Maximum
104 Degrees F
Level Indicators
Visual
Mount Type
Mounting Bracket, Tripod
Includes Batteries
Batteries Not Included
Laser Output
1.50 mW
Number of Planes
0
Standards
CSA STD C22.2 No. 61010-1, UL STDS 61010-1 and 2595
Operating Temperature - Minimum
39.2 Degrees F

Description

The DEWALT DCLE34021B is a compact cross line laser suitable for horizontal and vertical alignment tasks. This tool features green beam technology for enhanced visibility and is compatible with DEWALT 20V MAX batteries (up to 5.0 Ah, non-POWERSTACK). It offers electronic self-leveling and operates within a working range of up to 330 feet when used with a compatible detector (sold separately). Batteries are not included.


Key Features of the DEWALT DCLE34021B Laser:

  • Accuracy: ±1/8" at 30 feet.

  • Laser Beam: Green Class 2 diode.

  • Battery Compatibility: Compatible with DEWALT 20V MAX batteries; battery and charger sold separately.

  • Mounting Options: Includes bracket/tripod mount suitable for both mounting brackets and tripods (1/4"-20 and 5/8"-11 threads).

  • IP Rating: Rated IP54 (tool only).

  • Leveling Type: Electronic self-leveling.

  • Includes Accessories: Comes with bracket/tripod mount, case, and target for setup flexibility.

  • Standards Compliance: Meets CSA STD C22.2 No. 61010-1, UL STDS 61010-1, and UL STDS 2595 requirements.
