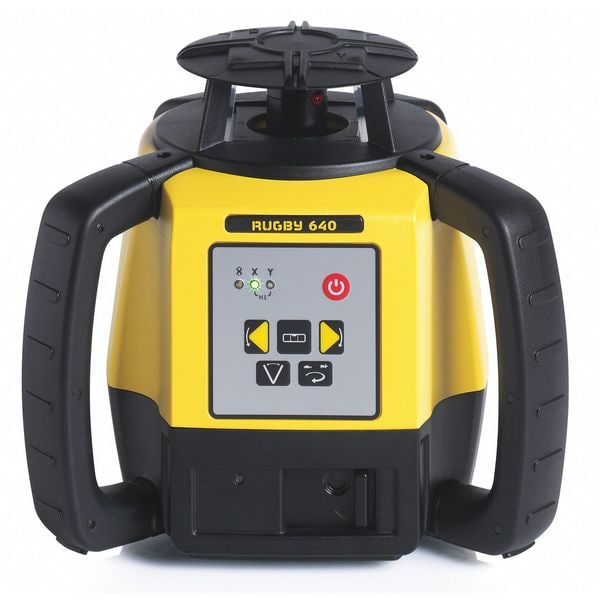

Leica Rugby Rotary Laser Kit, Interior/Exterior Usage Rugby 640 - main

Rotary Laser Kit, Interior/Exterior Usage

  • Mfr # Rugby 640

  • Zoro # G5070453

product price: $1,621.79
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Rugby 640
Zoro #
G5070453
UPC #
-
Country of Origin
China

Dimensions

Length
8 in
Height
8 in
Thread Size
5/8 in
Width
8 in
Tripod Thread Size
5/8"-11
Overall Depth
8 in
Overall Height
8 in
Overall Width
8 in

Details

Item
Rotary Laser Kit
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
1,500 ft
Laser Class
Class 2
Range w/Detector
2,600 ft
Visual/Audible Indicators
Yes
Number of 45 Degree Vials
0
Rotating Speed
10 RPM
Number of Scanning Modes
2
Number of Plumb Vials
0
Number of Level Vials
0
Slope
+/- 8 Degrees
Includes
Bracket, Case, Rod Eye 120
Power Source
(4) AA Batteries, (4) D Cell, Li-Ion Battery
Total Number of Vials
0
Plumb Down
No
Grade Capability
Dual
Auto Leveling Range
+/-5 Degrees
Auto Shutoff
Yes
Plumb Up
No
Accuracy
+/-3/32 in @ 100 ft
IP Rating
IP67
Preset Angle
None
Features
Detect the Laser Beam in any Conditions and at any Distances with the Leica Rod Eye Receiver Range - from a Convenient Offset Reading with Rod Eye 120G/120 to Working at Long Distances with Rod Eye 140/160, Rugby 640G Provides Outstanding Visibility for Indoor and Outdoor Applications with New Green Beam Laser Technology, Rugby 680 Provides a Semi Automatic Grade Capability in Both Axis upto 8%, Setting Foundations and Footings has Never Been More Efficient. the Rugby 600 Series is Fit for any Interior and Exterior Levelling, Aligning and Squaring Application - Concrete Forming, Pad Placement and Framework Levelling
Battery Type
Alkaline, 20V Max
Material
Plastic
Bluetooth
Not Bluetooth Compatible
Outdoor Range - Maximum
1,650 ft
Laser Output
2.7 mW +/- 5%
Laser Beam Color
Red
Self-Leveling Range
+/-5 Degrees
Plumb Direction
Plumb Up
Use Location
Indoor, Outdoor
Indoor Range - Maximum
1,650 ft
Operating Temperature - Minimum
-4 Degrees F
Includes Batteries
Batteries Included
Number of 45 Vials
0
Level Indicators
Audible, Visual
Working Range with Detector - Maximum
2,600 ft
Operating Temperature - Maximum
122 Degrees F
Preset Angles
180 Degrees
Weight
7.1 lb
Number of Planes
0
Automatic Shutoff
Yes
Working Range without Detector - Maximum
1,500 ft
Mount Type
Thumb Screw
Standards
ISO 9001

Description

This Leica Rugby 640 Rotary Laser Kit provides the accuracy and convenience you need for your interior or exterior project. It is ideal for both interior and exterior use. The rotary laser kit has a length of 8 in. and height of 8 in., making it compact enough to fit into tight spaces. The laser emits a red beam, which is easily visible on surfaces of different colors, even through light fog. This product has 4 power sources that allow you to work with any type of battery on hand. You can rotate the tool at speeds ranging from 0 to 10 RPM with an automatic self-leveling feature for added convenience. With its superior performance, precision engineering and ease of use, this Leica Rugby 640 Rotary Laser Kit makes an excellent addition to your tool collection.
