FLEXVOLT Cut-Off Saw, Electric, Blade 9In Dia. (Discontinued)

Dewalt FLEXVOLT Cut-Off Saw,  Electric,  Blade 9In Dia. DCS690B
Tap to zoom
Hover or click to zoom
  • Promotion Restriction: Not eligible for promotion
  • Item: Concrete Saw
  • Blade Dia.: 9 in
See full product details
This Product is Discontinued

Dewalt #DCS690B Specifications

  • Promotion Restriction: Not eligible for promotion
  • Item: Concrete Saw
  • Blade Dia.: 9 in
  • Max. Cutting Depth: 3 1/4 in
  • Max. Blade Speed: 6,500 RPM
  • Voltage: 60V DC
  • Tool Style: Handheld
  • Power Source: Cordless
  • Length: 24-3/4"
  • Width: 6-1/2"
  • Cutting Type: Wet/Dry
  • Height: 9-57/64"
  • HP: 9.0
  • Corded/Cordless: Cordless
  • Arbor Size: 7/8 in
  • Item - Handheld Concrete Saws: Handheld Concrete Saw
  • Motor Type: Electric
  • Application: Concrete, Steel, Asphalt, Stone, Castings
  • Max. RPM: 6600
  • Hz: 60
  • Tool Weight: 10.9 lb
  • Corded/Banded: Cordless
  • Depth of Cut: 3-1/4"
  • Full Load Amps: 15

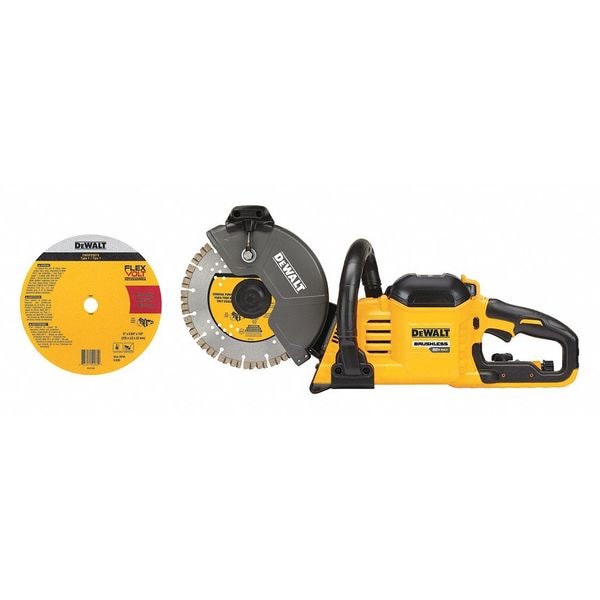

  • Includes: 9 in Abrasive Wheel, 9 in Diamond Blade, Blade Wrench, Water Hose Connection
  • Engine Brand: DEWALT(R)
  • Primary Application - Handheld Concrete Saws: Cinderblock
  • Features: 5 Position Rotatable Guard, Brushless Motor, Dual Sided Water Delivery System, Enhanced Air Intake
  • Variable Speed: Yes
  • Cordless Tool Kit Contents: (1) Bare Tool
  • Horsepower: 9
  • Battery Series: 60V MAX* FLEXVOLT
  • Charger Included: No
  • Series: FLEXVOLT(R)
  • Number of Batteries Included: 0
  • Arbor Shape: Round
  • Brushless Motor: Yes
  • Country of Origin (subject to change): China


Concrete Saw, Cordless, Series FLEXVOLT(R), Primary Saw Application Concrete, Masonry, Tool Style Handheld, Blade Dia. 9 in, Max. Blade Speed 6,500 RPM, Arbor Size 7/8 in, Arbor Shape Round, Cutting Type Wet/Dry, Max. Cutting Depth 3 1/4 in, Variable Speed Yes, Tool Weight 10.9 lb, Brushless Motor Yes, Cordless Tool Kit Contents (1) Bare Tool, Voltage 60V DC, Battery Series 60V MAX* FLEXVOLT, Number of Batteries Included 0, Charger Included No, Horsepower 9. The 60V MAX* Brushless Cut-Off Saw makes fast and efficient single pass cuts and scores in concrete, pavestones, steel, and rebar with the high-performance brushless motor that provides up to 6,600 RPM. The 9 in. blade allows for cuts up to 3-1/4 in. deep. A heavy load indicator light provides the user with power and runtime feedback during demanding applications. The rotatable 5-position guard allows selection of approach angle for optimal visibility and accessibility when cutting in tight spaces. The latched and sealed battery box provides additional protection from harsh jobsite conditions. In addition, this saw is OSHA Table 1 Compliant for dust management with the dual-sided water feed system. This tool comes Tag ReadyTM so users and companies can attach the DEWALT TagTM and track its location virtually anywhere via the DEWALT Tool ConnectTM app.
