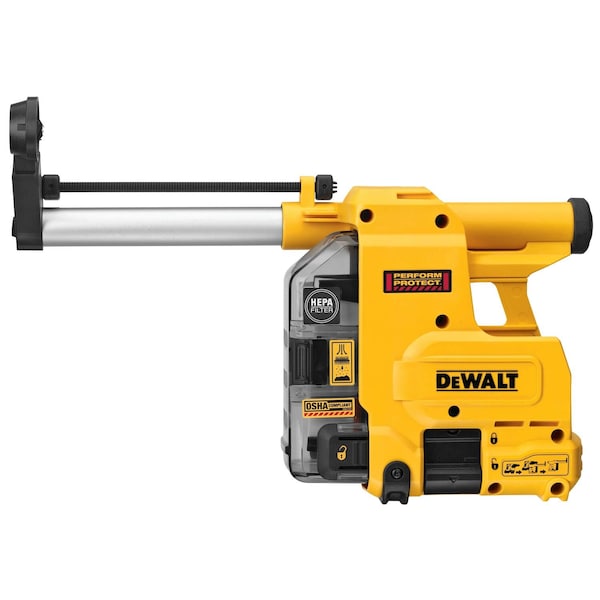

Onboard Dust Extractor for 1-1/8 in. SDS Plus Hammers
Mfr # DWH304DH
Zoro # G1457187
Key Features
Specifications
Product Information
- MFR #
- DWH304DH
- Zoro #
- G1457187
- UPC #
- 885911396493
- Country of Origin
- China
Dimensions
- Overall Length
- 17 1/4 in
- Maximum Application Diameter
- 1 in
- Overall Width
- 5 in
Details
- Item
- On-Tool Dust Extractor
- Application
- Drilling
- Includes
- Dust Box, Corded Adapter and Dust Nozzle
- Features
- Easily Adjusted Depth Stop, L-Shape Design
- For Use With
- D25333K, DCH293B, DCH293X2, Mfr. No. DCH293R2
- Number of Pieces
- 2
- OSHA Table 1 Compliant
- OSHA Table 1 Compliant
- Dust Compartment Type
- Self-Contained
- Wet or Dry Use
- Dry
- Extractor Mounting Location
- On-Tool
- Filtration Type
- HEPA
- Solid Bit Optimal Drilling Range in Concrete
- 1 in to 10 in
- Compatible Tool Type
- Rotary Hammer
- Product Type
- On-Tool Dust Extractor
- Battery Series
- 20V
- Standards
- OSHA
- Compatible with Manufacturer Part Number
- D25333, DCH293
- Kit Contents
- (1) DWH302DH Dust Box, (1) DWH304DH Dust Extractor
- Compatible Chuck Style
- SDS-Plus
Description
This OSHA Table 1-compliant Dust Extractor works with the cordless DCH293 and the corded D25333 1-1/8 in. Rotary Hammers. It features an OSHA 1926.1153-compliant Dust Box Assembly. With a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater.
This Dust Extractor has a powerful fan assembly for increased suction during high-performance drilling. It allows users to drill up to 1 in. diameter, to depths up to 10 in. Install large diameter sleeve, stud/wedge, and screw anchors using our onboard dust extractor.
- • Table 1-compliant dust management solution for 1-1/8 in. SDS Plus rotary hammers
- • Clear, durable dust box ensures users can see when dust box needs to be emptied
- • Replaceable dust nozzle to quickly change to new nozzle
Designed for:
- • Drilling holes between 1/2 in. and 7/8 in. for DEWALT Anchors Engineered by Powers anchors such as the Power-Stud+® and LOK-BOLT AS® family of anchors
- • (1) DWH304DH Dust Extractor
Additional Features:
- • Drill up to 1 in. Diameter, 8 in. useable length, 10 in. overall length bits
- • Fits into tight spaces on scissor lifts and between overhead pipes and duct work
- • Easily adjustable depth guage for accurate anchor drilling
- • Works on DEWALT corded and cordless 1-1/8 in. SDS Plus rotary hammers
- • Mechanically attaches to the tool motor to power dust collection, maximizing runtime of the battery
- • Unit ships configured for DCH293 cordless rotary hammer. Supplied adapters allow tool to fit corded D25333 SDS Plus Rotary Hammer
