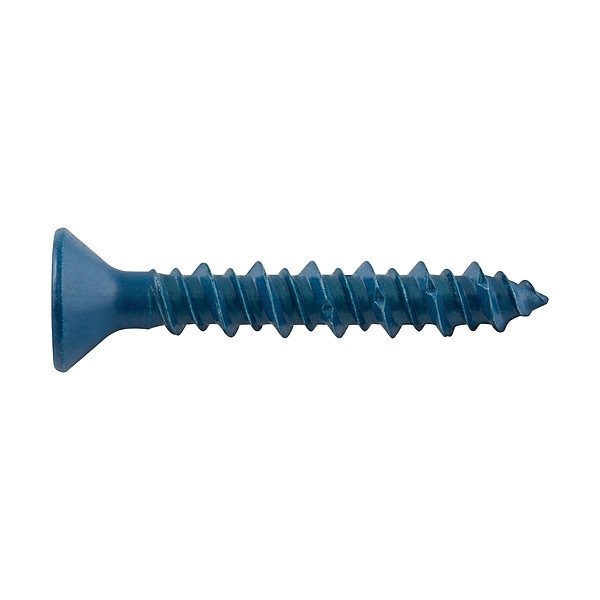

UltraCon, PK1000

  • Mfr # DFM12752SB
  • Zoro # G522638986
product price:
$
188.99
/pk of 1000, $0.19/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Head Height
0.141 in
Material
Steel
Features
Good Corrosion Protection, High-low Thread Design for Greater Stability and Grip, No Hole Spotting Required, Several Colors and Finishes to Match Application
ICC Approval Type
Cracked and Uncracked Concrete
Drill Bit Size
5/32 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DFM12752SB
Zoro #
G522638986
UPC #
0075352339078
Country of Origin
Taiwan, Province of China
Item
UltraCon Screw Anchor
Material
Steel
Features
Good Corrosion Protection, High-low Thread Design for Greater Stability and Grip, No Hole Spotting Required, Several Colors and Finishes to Match Application
ICC Approval Type
Cracked and Uncracked Concrete
System of Measurement
Inch
Minimum Ultimate Shear Strength
305 lb
Seismic Approved
Yes
Series
UltraCon
Finish
Zinc-Plated
Industry Standards
ESR-3042, ESR-3068, ESR-3196, ESR-3213, FL29080, ICC-ES, LABC, LARC, Miami-Dade, NOA 21-0113.01
Edge Distance
1 in
Compatible Material
Brick, Concrete, Masonry, Wood
Tip Type
Self-Tapping
Maximum Ultimate Shear Strength
1,265 lb
Material Grade/Class
Case Hardened
Removable
Removable
Material Quality Standards
ACI 355.2/ASTM E488, ICC-ES AC106, ICC-ES AC193, ICC-ES AC233, ICC-ES AC257
Drive Type
Torx
Screw Anchor Type
Screw Anchor
Minimum Ultimate Tension Strength
1,080 lb
Maximum Ultimate Tension Strength
1,690 lb
Ultimate Shear Strength (4,000 psi Concrete)
1,265 lb
Head Type
Flat
Ultimate Tension Strength (4,000 psi Concrete)
1,690 lb
Traction Material
Steel

Dimensions

Head Height
0.141 in
Drill Bit Size
5/32 in
Head Diameter
0.375 in
Anchor Diameter
3/16 in
Maximum Material Thickness
1/32 in
Body Length
4 in
Overall Length
4 in
Minimum Installation Depth
1/4 in
Thread Length
1 7/8 in

Description

UltraCon Screw Anchor, Anchor Diameter 3/16 in, Overall Length 4 in, Thread Length 1 7/8 in, Head Type Flat, Head Diameter 0.375 in, Head Height 0.141 in, Drive Type Torx, Material Steel, Finish Zinc-Plated, Material Grade/Class Case Hardened, Removable Removable, Drill Bit Size 5/32 in, Screw Anchor Type Screw Anchor, System of Measurement Inch, Includes Not Applicable, Maximum Material Thickness 1/32 in, Maximum Ultimate Shear Strength 1,265 lb, Maximum Ultimate Tension Strength 1,690 lb
