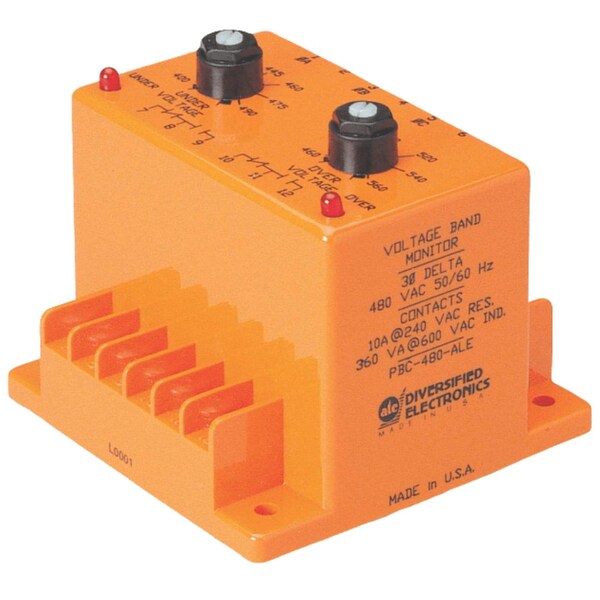

PBC Series 3-Phase Voltage Band Monitor

The PBC Series offers protection to three-phase equipment that is required to operate between two voltage limits. All three phases are monitored individually for a pre-selected UNDER and OVER VOLTAGE limit.Operation:With normal operating voltages applied, the internal relay will energize PICK-UP. When the voltages on any or all phases fall outside the pre-set Over/Under trip points for longer than the Release delay, the relay will de-energize DROP-OUT. When line conditions return to normal, the PBC Series Monitor automatically resets and the internal relay energizes.The LED fault indicators aid in set up and system trouble-shooting glowing on fault condition. The LED indicators have an immediate response to voltage conditions and operate independently of the relay.The HYSTERESIS in each unit provides a differential of 4% between the PICK-UP and DROP-OUT trip points.
