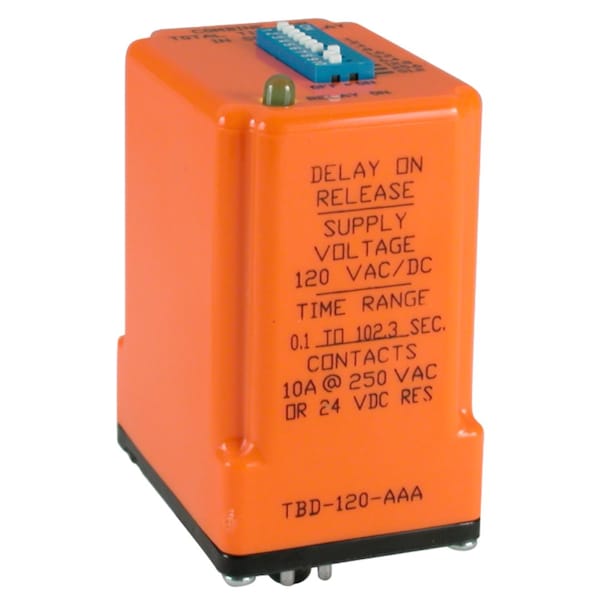

TBD Series Off-Delay DIP Swtich TDR
Mfr # TBD-120-A-B-A-D
Zoro # G909227376
product price:Â $204.99
/ea
Free Shipping & Returns
Key Features
Contact Form
DPDT
Maximum Time Setting
1,023 sec
Number of Delay Functions
1
Number of Pins
11
Current Rating
5A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TBD-120-A-B-A-D
- Zoro #
- G909227376
- UPC #
- -
- Country of Origin
- United States
Details
- Item
- Time Delay Relay
- Contact Form
- DPDT
- Maximum Time Setting
- 1,023 sec
- Number of Delay Functions
- 1
- Number of Pins
- 11
- Current Rating
- 5A
- Contact Rating (AC)
- 5 A @ 120V AC
- Coil Voltage
- 120V AC/DC
- Delay Function
- Off Delay
- Minimum Time Setting
- 1 sec
Description
Supply voltage is continuously applied to the input. An external isolated switch between pins 5 and 6 controls the timer. When closed, the relay energizes. Opening the switch initiates the delay period. Upon completion of the delay period, the relay de-energizes. If the control switch recloses during the delay period, the relay remains energized and the timer resets to zero. NOTE: The TBD Series is available in an 8-pin SPDT and an 11-pin DPDT configuration.
