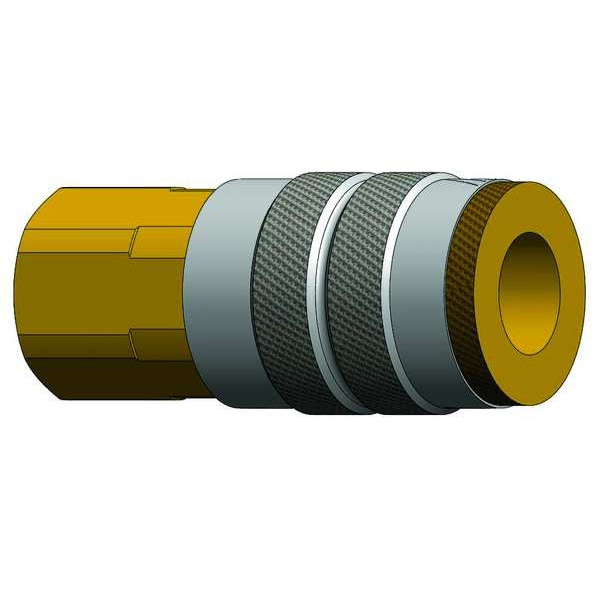

Coupler, Steel, 1/4 FNPT, 1/4 Body
Mfr # 2FF2
Zoro # G2896153
Key Features
Specifications
Product Information
- MFR #
- 2FF2
- Zoro #
- G2896153
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 2 1/16 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 15/16 in
- Wire Rope Length
- 2 1/16 in
- Length
- 2 1/16 in
Description
The DIXON - 2FF2 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection at the end of a hose or pipe. It features a sleeve locking mechanism and incorporates a tubular valve to control fluid or air flow during connection and disconnection. This coupling is suitable for use in pneumatic, hydraulic, and general-purpose fluid transfer applications. is specified for 1/4 in hose I.D. compatibility and 1/4 in NPT connection type. Its zinc-plated steel construction with nitrile seals provides a connection and durability within a temperature range of -40°F to 250°F.
Key Features:
- Application: On end of hose or pipe for fluid or air lines.
- Coupling component: Socket with sleeve locking type for secure attachment.
- Material: Steel body with zinc plated finish.
- Hose fitting details: 1/4 in size, female gender, and 1/4 in hose I.D. compatibility.
- Connection type: NPT threads sized at 1/4" - 18.
- Includes a tubular valve integrated into the coupling.
- Maximum working pressure: 500 psi at 70°F (as specified).
- Maximum flow rate: 764.55 liters per minute (as specified).
- Sealing material: Nitrile.
- Overall length: 2.06 in, maximum outside diameter: 15/16 in.
- Temperature range: -40°F to 250°F.
- Interchange type: Industrial standard.
